Introduction
Is your garage door refusing to open, or perhaps it’s opening at random times without your command? For many homeowners, dealing with an older Genie model can be frustrating, especially when you are unsure about the Genie Garage Door Opener Dip Switch Settings. You are not alone; thousands of users face synchronization issues every year due to mismatched codes between the remote and the motor unit.
In this guide, we will demystify the process of setting these switches. Whether you have lost your manual or simply want to ensure your home is secure, we will walk you through every step with clarity and precision. Let’s get your garage door working smoothly again.
Understanding Dip Switches: Why They Matter
Before we dive into the technical steps, it is crucial to understand what dip switches are and why they are the heart of your garage door’s communication system.
What Are Dip Switches?
Dip switches (Dual Inline Package switches) are tiny electronic switches found on both your garage door opener’s motor unit and your remote control. In older Genie models (typically those manufactured before 2011), these switches create a unique binary code.
Think of them as a digital handshake. For the door to open, the “handshake” code sent by the remote must exactly match the code set on the motor unit. If even one switch is in the wrong position, the door will remain closed.
The Shift to Rolling Codes
It is important to note that modern Genie openers use “rolling code” technology, which does not rely on physical dip switches. Instead, they use a digital algorithm that changes the code every time you press the button. However, millions of homes still utilize the older fixed-code systems. According to industry data, fixed-code systems are more susceptible to code grabbing if not properly secured, making correct configuration vital for safety.
For a deeper understanding of how garage door security standards have evolved, you can refer to this overview on Wikipedia.
Step-by-Step: How to Set Genie Dip Switches
If you have replaced a remote, installed a new keypad, or if your door has stopped responding, you likely need to reset or match these switches. Follow these precise steps.
Step 1: Locate the Dip Switches
First, ensure your safety. Unplug the garage door opener from the power source to prevent accidental activation while you are working on the unit.
- On the Motor Unit: Look for a small panel on the back or side of the motor head hanging from the ceiling. You may need a screwdriver to remove a cover. Inside, you will see a row of tiny switches, usually numbered 1 through 8 or 1 through 9.

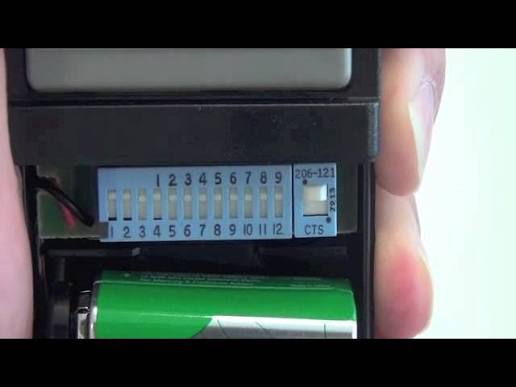

- On the Remote Control: Open the battery compartment of your handheld remote. The dip switches are often located under the battery or on the circuit board visible once the case is opened.
Step 2: Match the Positions
This is the most critical part of configuring Genie Garage Door Opener Dip Switch Settings.
- Look at the pattern of the switches on the motor unit. Each switch will be either in the “UP” (ON) or “DOWN” (OFF) position.
- Replicate this exact pattern on your remote control.
- Example: If switch #1 is UP on the motor, it must be UP on the remote. If switch #5 is DOWN on the motor, it must be DOWN on the remote.
Pro Tip: Use a pen or a small tool to flip the switches gently. Do not use excessive force, as these plastic components can break easily.
Step 3: Test the Connection
Once all switches are matched:
- Plug the garage door opener back into the power source.
- Wait for the light on the motor unit to stop blinking (indicating it is ready).
- Press the button on your remote.
If the door operates, you have successfully synchronized the devices. If not, double-check each switch position. One common mistake is misinterpreting “UP” and “DOWN” depending on the orientation of the remote.
Troubleshooting Common Issues
Even with careful setup, things can go wrong. Here are the most frequent problems users encounter and how to fix them.
The Door Doesn’t Respond
If the door remains stationary after matching the switches:
- Check the Batteries: Weak batteries can send a signal too weak to be recognized, even if the code is correct. Replace them with fresh alkaline batteries.
- Inspect for Damage: Look for corrosion on the battery contacts or broken switches.
- Verify the Model: Ensure the remote is compatible with your specific Genie model. Not all remotes work with all openers.
The Door Opens Intermittently
If the door works sometimes but not others:
- Loose Switches: Over time, vibration can cause dip switches to shift slightly. Open the remote and ensure all switches are firmly in place.
- Interference: LED light bulbs in the garage can sometimes interfere with radio frequencies. Try turning off the garage lights and testing the remote again.
Multiple Remotes Not Working
If you have more than one remote, all of them must have the exact same dip switch settings as the motor unit. You cannot have different codes for different remotes on a fixed-code system.
Security Risks of Fixed-Code Systems
While convenient, fixed-code dip switch systems have inherent security vulnerabilities compared to modern rolling codes.
| Feature | Fixed Code (Dip Switch) | Rolling Code (Modern) |
|---|---|---|
| Security Level | Low to Medium | High |
| Code Stability | Static (Never changes) | Changes with every use |
| Vulnerability | Susceptible to code grabbing | Highly resistant to hacking |
| Ease of Setup | Manual matching required | Automatic syncing |
Because the code never changes, a thief with a code-grabbing device could potentially record the signal and replay it later. To mitigate this risk:
- Keep your remote secure; do not leave it in plain sight in your car.
- Consider upgrading to a newer Genie model with Intellicode® technology if you live in a high-crime area.
- Regularly change the dip switch positions if you suspect unauthorized access.
When to Upgrade Your Garage Door Opener
If you find yourself constantly troubleshooting Genie Garage Door Opener Dip Switch Settings, it might be time for an upgrade. Modern openers offer significant advantages:
- Smartphone Control: Monitor and operate your door from anywhere using Wi-Fi connectivity.
- Battery Backup: Ensures operation during power outages.
- Enhanced Security: Rolling codes make unauthorized entry nearly impossible.
- Quiet Operation: Newer belt-drive models are significantly quieter than older chain-drive units.
If your current opener is more than 15 years old, investing in a new unit can improve both convenience and home security.
FAQ Section
1. Can I change the dip switch settings to prevent neighbors from opening my door?
Yes. Since fixed codes are static, you can manually change the pattern of the switches on both the motor unit and all your remotes to a new, unique combination. This effectively creates a new “key” for your door.
2. My remote has 9 switches, but the motor only has 8. What do I do?
This indicates incompatibility. You must use a remote that matches the number of switches on your motor unit. Using a remote with more switches than the motor will not work, as the extra switch has no corresponding pair to match.
3. Do I need to reprogram the wall console too?
If your wall console also uses dip switches (common in older setups), yes, it must match the same code as the motor and handheld remotes. However, many wall consoles are hardwired and do not use dip switches; they operate directly via the wire connection.
4. Why do some switches feel loose?
Over years of use, the internal springs of dip switches can wear out. If a switch feels loose or doesn’t stay in position, it may need to be replaced. In some cases, users apply a tiny drop of super glue to hold the switch in place, but this makes future changes difficult. Replacing the remote is often the safer option.
5. Is it safe to leave the garage door opener plugged in while adjusting switches?
No. Always unplug the unit before accessing the internal components. This prevents electrical shock and stops the door from activating unexpectedly while your hands are near the moving parts.
6. Can I use a universal remote with dip switches?
Yes, many universal remotes come with adjustable dip switches. You will need to consult the universal remote’s manual to find the correct switch pattern that corresponds to your Genie model. These manuals usually provide charts listing brand-specific codes.
Conclusion
Mastering Genie Garage Door Opener Dip Switch Settings is a valuable skill for any homeowner with an older garage system. By carefully matching the switch positions on your remote to the motor unit, you can restore functionality and ensure reliable access to your garage.
Remember, while these systems are effective, they require manual attention to detail. If you continue to experience issues despite correct settings, consider consulting a professional technician or upgrading to a modern, secure rolling-code opener.
Did this guide help you fix your garage door? Share this article with friends and family who might be struggling with their own Genie openers! Let’s help everyone enjoy a smooth and secure entry to their homes.
