Is your older garage door remote acting up, leaving you stuck in the driveway after a long day at work? Dealing with outdated technology can be incredibly frustrating, especially when you just want to get inside your warm home. Fortunately, using a reliable Genie Garage Door Opener Dip Switch Manual is the quickest way to solve this problem and get your daily routine back on track.
What Is a Genie Garage Door Opener Dip Switch Manual For?
Before diving into the physical repairs, it is highly beneficial to understand what you are actually fixing. Older Genie garage door openers rely on a series of tiny toggle switches to communicate with your handheld remote.
This Genie Garage Door Opener Dip Switch Manual helps you align those tiny switches so the motor unit and the remote speak the exact same “language.”
Before the invention of rolling code technology in the mid-1990s, these physical switches were the industry standard for security. By creating a unique pattern, you ensured that your neighbor’s remote would not accidentally open your garage door.
If the switches do not match exactly, the motor unit will ignore the signal, and the door will not respond to your commands. Understanding this basic mechanism is the first step toward a successful repair.
Locating the Switches on Your Genie System
You do not need to download a massive PDF or search through confusing forums to find the information you need. The physical switches are located in two specific places within your system.
First, grab a sturdy step ladder and safely locate the motor unit hanging from your garage ceiling. Always ensure the ladder is placed on a flat, stable surface to prevent accidents.
Look under the plastic light lens or behind a small access panel on the back of the main unit. You will see a row of tiny switches, usually colored blue or red.
Next, open the battery compartment of your handheld remote. Use a small flathead tool to gently pry open the casing to find its matching set of switches. Keep track of any tiny screws you remove!
Step-by-Step: Matching Your Dip Switches (Tutorial)
Fixing this issue requires zero technical expertise. Just follow these concrete steps to sync your devices properly.
Step 1: Gather Your Tools Grab a small flathead screwdriver, a bright flashlight, and a ballpoint pen. You will also need a fresh 12-volt alkaline battery for your remote. Ensure your workspace is well-lit and your ladder is completely stable on the concrete floor.
Step 2: Access the Motor Unit Switches Carefully remove the plastic light lens from the Genie motor unit by squeezing the sides or unscrewing the retaining clip. You will see a row of either 9 or 12 tiny toggle switches. Note their current positions (up, down, or center) using your pen to write them down on a piece of paper.

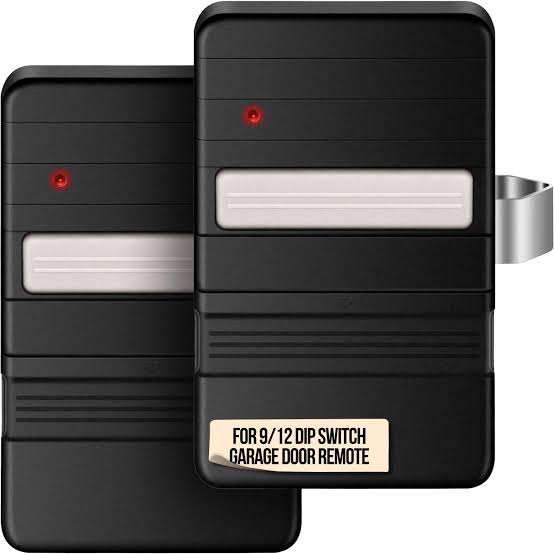

Step 3: Access the Remote Switches Open your handheld remote using the small screwdriver. Locate the matching row of switches nestled right next to the battery compartment. Be careful not to damage the delicate wiring attached to the circuit board.
Step 4: Match the Patterns Exactly Using your pen or a toothpick, adjust the remote switches to perfectly mirror the motor unit. If switch #1 on the motor is up, switch #1 on the remote must be up.
Do this for all 9 or 12 switches. Take your time, as a single mismatched switch will break the connection entirely. Double-check your work before moving to the next step.
Step 5: Test the System Put the fresh battery back into the remote and carefully snap the casing back together. Stand at least five feet clear of the door and press the remote button. The door should respond immediately and operate smoothly!
9-Pin vs. 12-Pin Dip Switch Systems: Quick Comparison
Genie manufactured different models over the decades, and identifying yours is crucial for proper troubleshooting. Here is a quick text infographic table to help you identify your specific system.
| Feature | 9-Pin Dip Switch System | 12-Pin Dip Switch System |
|---|---|---|
| Total Switches | 9 tiny toggles | 12 tiny toggles |
| Possible Combinations | 19,683 unique codes | 531,441 unique codes |
| Security Level | Basic (older models) | Moderate (newer legacy models) |
| Common Models | Genie SD5000, SD8000 | Genie Excelerator, Screw Drive |
| Switch Positions | Up / Down / Center | Up / Down / Center |
While 12-pin systems offer over half a million combinations, 9-pin systems are more susceptible to accidental overlap in densely populated neighborhoods. Always verify your pin count before purchasing replacement parts.
Troubleshooting Common Dip Switch Issues
Even after consulting your Genie Garage Door Opener Dip Switch Manual, you might face a few technical hiccups. According to industry repair statistics, nearly 40% of remote failures are simply due to corroded battery contacts, not broken internal switches.
If your remote still fails, clean the metal battery contacts with a cotton swab dipped in isopropyl alcohol. Let it dry completely before inserting the new battery.
Additionally, check for radio frequency interference. Modern LED light bulbs installed in the motor unit can sometimes emit frequencies that block the remote’s signal. Swap them out for Genie-approved, shielded bulbs to restore a clear signal path.
Finally, inspect the hanging wire antenna on the motor unit. Ensure it is hanging straight down and is not bundled up or touching any metal parts, as this severely limits the remote’s operational range.
Expert Insights and Safety Tips
Working with heavy machinery always requires strict caution. Garage door technicians always emphasize the importance of keeping your fingers away from moving sections and pinch points.
As noted in the comprehensive overview of garage door openers on Wikipedia, these automated systems utilize significant kinetic energy and should be treated with the utmost respect.
Never attempt to adjust the dip switches while the door is in motion. Always ensure the area is completely clear of children, pets, and obstacles before testing the remote.
Experts also recommend changing your remote battery every 12 to 18 months to maintain optimal signal strength and prevent acid leaks from destroying the remote’s internal circuit board.
When to Call a Professional for Your Genie Opener
Sometimes, DIY fixes are simply not enough to get your door moving again. If you have matched the switches perfectly, replaced the battery, and cleared all interference, the internal receiver board might be dead.
Replacing a receiver board requires opening the high-voltage housing of the motor unit. Unless you are experienced with electrical repairs, it is always safer to hire a certified garage door technician.
They possess the specialized multimeters required to diagnose board-level failures safely and efficiently. Saving your physical safety is always worth the cost of a professional service call.
FAQ: Genie Garage Door Opener Dip Switch Manual
Q: How do I know if my Genie opener uses dip switches? A: If your Genie system was manufactured before 1995, it almost certainly uses physical dip switches. Newer models use “Intellicode” rolling technology, which requires pressing a digital “Learn” button on the motor unit instead of matching tiny physical switches. Check your owner’s manual or the manufacturing date sticker on the motor housing for confirmation.
Q: Can I convert my dip switch Genie to a rolling code system? A: Yes, you absolutely can! You can purchase a Genie Universal Receiver and Remote Conversion Kit. This affordable kit bypasses the old dip switch receiver entirely and upgrades your system to modern, highly secure rolling code technology without the need to replace the entire heavy motor unit.
Q: What do I do if my remote switches are broken or missing? A: If the physical toggle pins inside the remote are snapped or the circuit board is cracked, the remote cannot be reliably repaired. You will need to purchase a compatible replacement remote or upgrade to a universal remote kit specifically designed to interface with older Genie legacy systems.
Q: Why did my dip switch remote suddenly stop working? A: The most common culprit is a dead battery or dirty, oxidized battery contacts. However, extreme temperature fluctuations in an uninsulated garage can sometimes cause the metal contacts to expand or contract, temporarily breaking the electrical connection. Bringing the remote inside to warm up often resolves this issue.
Q: Is it safe to leave my dip switches in the “default” factory position? A: It is highly discouraged by security professionals. Leaving switches in the factory default position (often all “up” or all “down”) makes your home highly vulnerable. Neighbors with identical Genie openers might accidentally open your door when they press their own remotes upon returning home from work.
Q: Can a universal remote work with my old Genie dip switch system? A: Yes, many modern universal remotes are backward-compatible. These remotes come with internal dip switches that you can manually adjust to match your motor unit. Always check the packaging to ensure it explicitly lists compatibility with “legacy Genie 9-pin or 12-pin” models before purchasing.
Conclusion
Dealing with an outdated garage system does not have to be a stressful or expensive chore. By following the instructions in this Genie Garage Door Opener Dip Switch Manual, you can easily restore your remote’s functionality and secure your home in just a few minutes. Always prioritize safety, keep your battery contacts clean, and ensure your switch patterns match perfectly.
