Introduction
Is your Genie garage door motor humming loudly, but the door stubbornly refuses to budge? You are not alone, and the good news is that a Genie garage door opener blown gear replacement is a highly fixable DIY project. In this guide, we will walk you through the exact, safe steps to get your garage running smoothly again, saving you hundreds of dollars in professional repair fees.
Why Does a Genie Garage Door Opener Blown Gear Replacement Become Necessary?
Before diving into the repair, it helps to understand why this happens. Genie, like many reputable garage door opener manufacturers, intentionally uses a nylon or plastic composite gear as a “sacrificial part.”
According to industry maintenance data, worn or stripped gears account for over 60% of garage door opener failures once the unit passes the 7-year mark. This design is actually a safety feature: the plastic gear is meant to strip before the much more expensive metal motor shaft or the heavy garage door itself sustains damage. Common triggers include a lack of regular lubrication, extreme temperature fluctuations in the garage, or the added weight of an uninsulated or poorly balanced door.
Signs You Need a Genie Garage Door Opener Blown Gear Replacement
How do you know the gear is the culprit and not the motor or the remote? Look for these classic symptoms:
- A loud humming or buzzing sound when you press the remote, but no movement.
- The door moves only an inch or two before stopping completely.
- A distinct grinding or crunching noise coming from the motor housing.
- The wall button and remotes light up, proving the unit has power, but the mechanical action fails.
If you experience these signs, the internal gear has likely lost its teeth, disconnecting the motor’s power from the drive mechanism.
Tools and Parts You Will Need
Preparation is the key to a smooth repair. Gather these specific items before you begin:

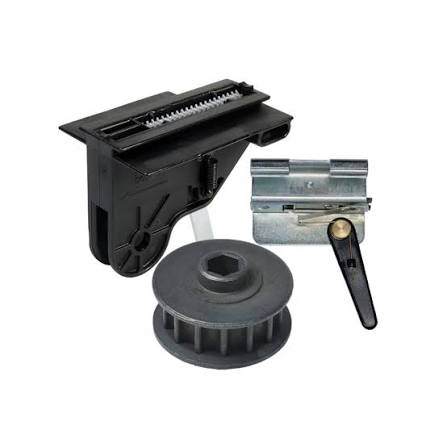

- Genie Gear and Sprocket Assembly Kit (e.g., Part # 39098R.S for chain drive or # 41993R for screw drive models).
- 7/16-inch socket wrench with a 3-inch extension.
- Phillips head screwdriver (standard #2 size).
- High-quality lithium-based grease (Never use standard WD-40, as it attracts dust and dries out).
- Safety glasses and work gloves to protect against sharp metal edges and old plastic shavings.
- A sturdy step ladder to safely reach the ceiling-mounted unit.
Step-by-Step Genie Garage Door Opener Blown Gear Replacement
Follow these concrete steps carefully. Take your time, and do not force any components.
Step 1: Disconnect Power and the Door
Safety first. Unplug the garage door opener from the ceiling outlet. Next, pull the red emergency release cord down to disconnect the door from the opener carriage. Manually lift the door halfway to ensure it is balanced and stays in place.
Step 2: Remove the Light Lens and Motor Cover
Using your Phillips head screwdriver, remove the screws securing the light lens (usually 2 to 4 screws). Set the lens aside carefully. Then, remove the 4 to 6 screws holding the main plastic motor cover in place. Gently lift the cover off to expose the internal circuit board and gear assembly.
Step 3: Extract the Old Gear and Sprocket
Locate the main gear assembly attached to the motor shaft. Using your 7/16-inch socket wrench with the extension, loosen and remove the retaining bolt or nut. Pro tip: Take a quick photo with your phone before removal to remember the exact orientation of the washers and the gear. Pull the old, stripped gear assembly straight off the motor shaft.
Step 4: Clean and Lubricate the Housing
Use a clean, dry rag to wipe away any white plastic shavings or old, hardened grease from the inside of the housing. Apply a pea-sized amount of lithium-based grease directly to the new gear’s teeth and the motor shaft. Do not over-grease, as excess will drip onto the circuit board.
Step 5: Install the New Gear Assembly
Slide the new gear and sprocket assembly onto the motor shaft. Ensure the flat edge of the motor shaft aligns perfectly with the corresponding flat slot inside the new gear. Reinstall the retaining bolt and tighten it to approximately 45–50 inch-pounds of torque. It should be snug, but do not overtighten, as this can crack the new plastic gear.
Step 6: Reassemble and Test the Limits
Snap the motor cover back into place and reinstall the screws. Reattach the light lens. Plug the unit back into the wall outlet. Re-engage the door with the opener carriage by pulling the release handle toward the door. Test the opener using the wall button. If the door travels too far or reverses prematurely, you will need to recalibrate the open and close limit screws according to your specific Genie model’s manual.
Genie Gear Replacement: Pros and Cons of DIY
Is tackling this repair yourself the right choice? Review this quick comparison:
| Aspect | Pros of DIY Replacement | Cons of DIY Replacement |
|---|---|---|
| Cost | Saves $150–$300 in professional labor fees. | Requires a $25–$45 upfront investment in the kit. |
| Time | Can be completed in 45–60 minutes. | Requires scheduling time and gathering tools. |
| Skill | Builds valuable home maintenance confidence. | Risk of improper installation if instructions are ignored. |
| Warranty | N/A | May void remaining manufacturer warranty if not done by a pro. |
Expert Insight on Garage Door Maintenance
To maximize the lifespan of your new gear, preventative care is essential. “Regular maintenance, including annual lubrication of the rail, chain, or screw drive, can extend the operational lifespan of your garage door opener by up to 5 years,” notes a certified garage door technician. Ensuring your door is properly balanced (so the motor doesn’t have to lift dead weight) is equally critical to preventing premature gear wear.
For a broader understanding of how these mechanisms function within modern homes, you can explore the general mechanics of a garage door opener on Wikipedia.
Frequently Asked Questions (FAQ)
Q1: How do I know if my Genie garage door opener gear is stripped?
A: The most definitive sign is a loud humming or buzzing noise from the motor when activated, paired with little to no movement of the garage door. If you open the cover and see white plastic shavings or rounded-off teeth on the main gear, it is stripped.
Q2: Can I replace just the gear, or do I need the whole sprocket assembly?
A: It is highly recommended to replace the entire gear and sprocket assembly kit. The sprocket and gear wear together, and replacing only one part often leads to premature failure of the new component due to mismatched wear patterns.
Q3: How much does a Genie garage door opener gear replacement cost?
A: A genuine Genie replacement gear kit typically costs between $25 and $45. If you hire a professional technician, expect to pay an additional $100 to $200 for labor, bringing the total to $125–$250.
Q4: Is it safe to replace the gear myself without professional help?
A: Yes, it is generally safe for a homeowner with basic mechanical aptitude, provided you completely disconnect the power and disengage the door from the opener before starting. Always wear safety glasses to protect your eyes from falling debris.
Q5: What is the difference between Genie screw drive and chain drive gear kits?
A: They are not interchangeable. Screw drive models (where a threaded steel rod moves the trolley) use a specific gear kit designed for higher torque and linear motion. Chain drive models (which use a bicycle-style chain) require a different sprocket configuration. Always check your model number before purchasing.
Conclusion
A Genie garage door opener blown gear replacement might sound intimidating, but it is one of the most straightforward and rewarding DIY home repairs you can tackle. By following this guide, you can restore your garage’s functionality, enhance your home’s security, and keep hundreds of dollars in your pocket. Remember to use the correct tools, apply lithium grease sparingly, and always prioritize safety.
