Dealing with a garage door that refuses to close can be incredibly frustrating, especially when you suspect it is just a simple wiring issue. You are not alone; thousands of homeowners face this exact challenge every year, often right when they need to leave for work. Fortunately, mastering Genie Bluemax Garage Door Opener Sensor Wiring is easier than you might think with the right, easy-to-follow guidance. Let’s get your garage door operating safely and smoothly again today.

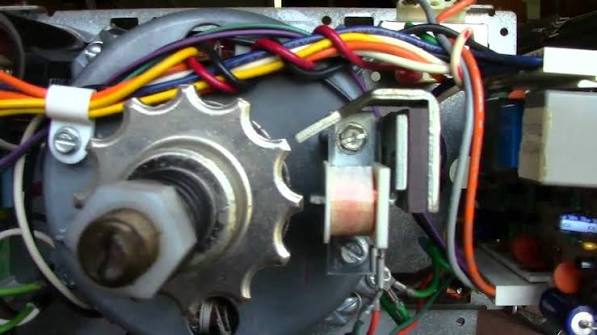

What Is the Correct Genie Bluemax Garage Door Opener Sensor Wiring Setup?
Before diving into the tools, it is essential to understand how the system works. Genie Safe-T-Beam sensors are fully compatible with Genie Bluemax models, provided you have the correct plugs or are willing to adapt the wiring safely
store.geniecompany.com.
The system relies on an invisible infrared beam projected across the bottom of your garage door opening. If this beam is interrupted by a person, pet, or object, the door instantly reverses to prevent entrapment
store.geniecompany.com. The setup consists of two distinct units:
- Transmitter (Sending Unit): Emits the infrared beam. This unit typically features a solid red LED light.
- Receiver (Receiving Unit): Captures the infrared beam. This unit typically features a solid green LED light when aligned correctly store.geniecompany.com.
Understanding this dynamic is the first step to diagnosing and fixing any wiring or alignment faults.
Tools You Will Need for the Job
Gathering the right tools before you start will make the process seamless and prevent mid-repair trips to the hardware store.
- Phillips-head screwdriver
- Precision wire strippers
- Electrical tape (for securing loose connections)
- Measuring tape
- A small carpenter’s level
- 22-gauge or 20-gauge stranded, color-coded wire (if extensions are needed)
Step-by-Step Genie Bluemax Sensor Wiring Tutorial
Follow these concrete, actionable steps to wire your sensors correctly.
Step 1: Power Down the System
Always prioritize safety. Unplug the garage door opener from the wall outlet or turn off the dedicated circuit breaker in your home’s electrical panel.
Step 2: Assess the Existing Wires
Older Genie Bluemax models may not have modern, plug-and-play connectors. If your system lacks matching plugs, you may need to carefully cut the ends of the old Safe-T-Beam plugs to splice the wires directly to the new sensors
cdn.prod.website-files.com.
Step 3: Strip the Wires Precisely
Use your wire strippers to remove exactly 1/4 inch (6 mm) of insulation from the ends of the color-coded wires (typically red and white, or black and white)
www.fixngotx.net. Stripping too much can expose bare copper, creating a short-circuit risk.
Step 4: Connect to the Motor Head Terminals
Insert the stripped wires into the corresponding colored terminals on the opener’s motor head. Ensure the red wire connects to the red terminal and the white wire connects to the white terminal. Consistency is key to maintaining correct polarity.
Step 5: Secure the Connection
Tighten the terminal screws firmly with your Phillips-head screwdriver. Give the wire a gentle tug to ensure it is locked in place, but avoid over-tightening, which can snap the delicate copper strands.
Step 6: Mount the Sensors Accurately
Position both sensor units exactly 6 inches (15 cm) above the garage floor on either side of the door track. Use your carpenter’s level to ensure they are perfectly horizontal.
Step 7: Test the Alignment
Restore power to the opener. A solid red light on the transmitter and a solid green light on the receiver indicate a successful, uninterrupted connection.
Common Wiring Mistakes and How to Avoid Them
Even experienced DIYers can stumble over a few common pitfalls. Use this quick reference guide to troubleshoot effectively.
| Common Mistake | The Consequence | The Pro Solution |
|---|---|---|
| Reversed Polarity | The green LED blinks or stays completely off. | Double-check that red maps to red and white maps to white at the motor head. |
| Loose Wire Strands | Intermittent signal failure; door works randomly. | Twist stripped copper strands tightly together before inserting them into the terminal. |
| Direct Sunlight Exposure | Infrared beam interference during certain times of day. | Angle the sensors slightly downward or attach a small cardboard shade to block direct sun support.geniecompany.com. |
| Using Solid-Core Wire | Wires break over time due to motor vibration. | Always use stranded wire for garage door applications, as it flexes without fracturing. |
Expert Insight: Why Proper Sensor Wiring Matters
According to the U.S. Consumer Product Safety Commission (CPSC), automatic reverse mechanisms triggered by photoelectric sensors have prevented countless entrapment incidents since they became federally mandatory for all garage door openers manufactured after 1993.
Properly executing your Genie Bluemax Garage Door Opener Sensor Wiring is not just about the convenience of a functioning door; it is a critical household safety measure. For more background on the evolution of these vital safety mechanisms, you can explore the general history of the garage door opener on Wikipedia.
Frequently Asked Questions (FAQ)
Q1: Why does my Genie Bluemax garage door only close when I hold down the wall button?
A: This is a classic safety sensor failure indicator. If the green LED on the receiving sensor is blinking or entirely off, the opener’s logic board assumes an obstruction is present. Check your wiring connections, ensure the lenses are clean, and verify perfect alignment.
Q2: Can I use universal Safe-T-Beam sensors for my Genie Bluemax opener?
A: Yes, authentic Genie Safe-T-Beam replacement kits are broadly compatible with Genie Bluemax models manufactured after 1993
www.amazon.ie. However, be prepared to cut the original plug ends and wire them directly if your specific older model requires it
cdn.prod.website-files.com.
Q3: What do the different LED light colors mean on my Genie sensors?
A: A solid red light on the sending unit means it has power and is actively transmitting the beam. A solid green light on the receiving unit means it is successfully capturing that beam. If the green light blinks, the beam is misaligned, blocked, or the wiring is faulty.
Q4: How far apart can the Genie Bluemax safety sensors be installed?
A: The sensors can be installed up to 20 feet apart, which comfortably covers the width of standard single and double garage doors. Just ensure your wire length is sufficient to reach the motor head without being pulled taut.
Q5: What gauge wire should I use if I need to extend my sensor wiring?
A: If you need to extend the reach, use a standard 22-gauge or 20-gauge stranded, color-coded wire (such as red and white). Never use solid-core thermostat wire, as it is prone to breaking under the constant vibration of the garage door motor.
Conclusion
Successfully completing your Genie Bluemax Garage Door Opener Sensor Wiring ensures your family’s safety and restores the seamless, everyday convenience of your automated garage. By following these precise steps, carefully checking your LED indicators, and avoiding common polarity mistakes, you can troubleshoot and repair your system like a true professional.
