Struggling to make sense of your new garage door setup? You’re not alone—many homeowners find the Garage Genie Door Opener Screw Installation Poster a bit overwhelming at first glance. Don’t worry; this friendly, step-by-step guide will walk you through everything you need to know to install your opener safely and efficiently.
What Is the Garage Genie Door Opener Screw Installation Poster?
The Garage Genie Door Opener Screw Installation Poster is an official, 8-page visual assembly and installation guide specifically designed for Genie screw drive models
www.manualslib.com. Instead of dense paragraphs of text, this poster breaks down complex mechanical steps into easy-to-follow visual diagrams.
Why is this so important? According to the National Electronic Injury Surveillance System (NEISS), more than 20,000 garage door-related injuries occur annually in the U.S.
howelldoor.com. Proper installation is not just about convenience; it is a critical safety measure. The poster covers essential phases like rail assembly, powerhead mounting, and Safe-T-Beam® sensor alignment, ensuring your system operates smoothly for years to come.
Essential Tools and Pre-Installation Checklist
A successful DIY project always starts with thorough preparation. Before you unbox your opener, gather the right tools and verify your garage’s readiness.
Recommended Tools:
- Wrenches and sockets: 1/4″, 3/8″, 7/16″, 1/2″, and 9/16″
- Drill bits: 1/8″ and 1/16″
- A sturdy 6′ or 7′ stepladder
- A helper (garage door openers are heavy and awkward to hold alone)
Pre-Installation Checks:
- Measure your door height: If your garage door is taller than 7 feet, you will need a Rail Extension Kit to accommodate the extra travel distance www.geniecompany.com.
- Check the door balance: Lift the door manually to the halfway point and let go. It should stay put or move very slowly. If it drops rapidly, your springs are unbalanced.
- Clear the path: Remove all ropes and disable any locks connected to the garage door to prevent accidental damage during operation www.geniecompany.com.
Step-by-Step Installation Guide (Based on the Official Poster)
Follow these concrete, numbered steps to ensure a secure and compliant setup.

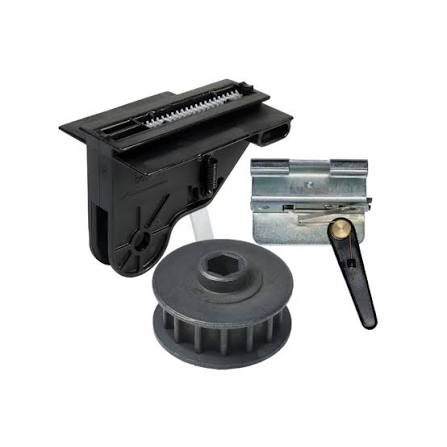

Step 1: Rail Assembly
Begin by sliding one rail connector over the powerhead end rail section until it locks into place. Next, slide the middle rail section into the connector, followed by the door end rail section. Finally, secure the screw drives of each section with two collars and two clips to prevent any mechanical slippage
www.geniecompany.com.
Step 2: Mounting the Powerhead to the Ceiling
Find and mark the ceiling at the exact center line of your garage door. If you have a finished ceiling, you will need a piece of angle iron or a 2″ x 6″ piece of lumber to span securely across the ceiling joists
www.geniecompany.com. Elevate the opener assembly with your helper and position the door end rail section inside the header bracket. Secure it using the provided 3/8″-16 x 7/8″ bolts and lock nuts.
Step 3: Attaching the Door Bracket
Center the door bracket on the top, rigid section of the garage door. It is absolutely crucial that the door is properly braced before mounting the opener. The Genie Company explicitly states they are not responsible for damage caused by an improperly braced door
www.geniecompany.com.
Step 4: Installing the Safe-T-Beam® Sensors
Position the safety sensors on each side of the garage door. For optimal detection, they should be mounted no higher than 6 inches above the floor. Route the wiring from the powerhead to the sensors carefully, ensuring the wires are not pinched or placed near moving parts
www.geniecompany.com.
Step 5: Connecting Power
Install light bulbs (100 watts or less) into the powerhead. Plug the grounded electrical plug into a properly grounded outlet located within approximately 3 feet of the powerhead
www.geniecompany.com. Never alter the plug in any way. For more background on residential electrical safety standards, you can refer to general guidelines on Wikipedia.
Screw Drive vs. Chain Drive: Which Is Right for You?
Understanding your opener type helps you maintain it properly. Here is a quick comparison to highlight why your screw drive model is a great choice.
| Feature | Screw Drive Opener | Chain Drive Opener |
|---|---|---|
| Noise Level | Quieter (fewer moving parts) | Louder (metal-on-metal contact) |
| Maintenance | Low (pre-lubricated rail) | Moderate (requires periodic chain lubrication) |
| Weather Durability | Sensitive to extreme cold (may need special lubricant) | Highly durable in all weather conditions |
| Operation Speed | Faster, smoother operation | Standard operation speed |
Common Mistakes to Avoid During Installation
Even with a great guide, small oversights can cause major headaches. Avoid these common pitfalls:
- Ignoring Door Balance: Installing an opener on an improperly balanced door can cause severe injury and quickly burn out the motor www.geniecompany.com. Always test the manual balance first.
- Skipping the Safety Sensors: The Safe-T-Beam® system is mandatory. If the infrared beam is interrupted while the door is closing, the door must automatically reverse.
- Improper Grounding: Always use a grounded outlet. Bypassing this step creates a serious electrical shock hazard www.geniecompany.com.
Frequently Asked Questions (FAQ)
Q1: Do I need a Rail Extension Kit for my Genie screw drive opener?
A: Yes, if your garage door is taller than 7 feet. An 8-foot door specifically requires an extension kit to accommodate the extra travel distance safely
www.geniecompany.com.
Q2: Can I install the Garage Genie Door Opener Screw Installation Poster setup entirely by myself?
A: While it is designed as a DIY-friendly project, the powerhead and rail assembly are heavy and awkward. It is highly recommended to have a helper to hold the components while you secure them to the ceiling.
Q3: What should I do if my garage door does not stay open halfway?
A: This indicates a broken or unbalanced spring. Do not attempt to adjust the springs yourself, as they are under extreme high tension. Contact a trained door system technician for repairs
www.geniecompany.com.
Q4: How often should I lubricate the screw drive rail?
A: Genie screw drive rails are typically pre-lubricated at the factory. However, if you live in an area with extreme temperature fluctuations, you may need to apply a specific garage door lubricant (like Lithium-based grease) once a year.
Q5: Where should I mount the wall console?
A: Mount the wall console at least 5 feet above the floor. Ensure it is away from all moving parts of the door and in a location where small children cannot reach it
www.geniecompany.com.
Conclusion
By carefully following the Garage Genie Door Opener Screw Installation Poster, you ensure a safer, quieter, and more reliable garage door system. Taking the time to prepare, balance your door, and follow each step methodically will save you from costly repairs and potential safety hazards down the road.
