Introduction
Is your garage door refusing to open because the remote lost its signal? You are not alone. Many homeowners with vintage systems face confusion when dealing with older Genie garage door opener remote dip switches, especially since modern models have moved away from this technology. Understanding how these tiny switches work is the key to restoring convenience and security to your home without calling an expensive technician.
In this guide, we will demystify the process of matching your remote to your opener. We will walk you through the exact steps, common pitfalls, and safety tips to ensure your system works flawlessly. Whether you have a dusty Model 2022 or a classic Blue Max, this article has you covered.
What Are Dip Switches and Why Do They Matter?
Before we dive into the “how-to,” it is essential to understand the “what.” Dip switches (Dual Inline Package switches) are small electronic components found on circuit boards. In the context of garage door openers manufactured before the mid-2000s, they served as the primary security mechanism.
Unlike modern rolling code technology that changes the access code every time you press the button, dip switch systems use a fixed code. This means the pattern of switches on your remote must exactly match the pattern on the motor unit inside your garage. If even one switch is in the wrong position, the door will not respond.
The Shift Away from Dip Switches
It is worth noting that Genie, along with other major manufacturers like LiftMaster and Chamberlain, phased out dip switches due to security vulnerabilities. Fixed codes are easier for thieves to intercept using simple radio scanners. However, millions of these units are still in operation across the United States, making knowledge of their maintenance crucial for legacy system owners.
For more historical context on how garage door security has evolved, you can refer to this Wikipedia overview on garage door openers.
How to Locate the Dip Switches on Your Genie System
Finding the switches is the first step in troubleshooting. Depending on the age and model of your Genie opener, the location may vary slightly.
On the Remote Control
- Remove the Battery Cover: Slide off the back cover of your remote.
- Look for the Panel: You will see a small row of tiny plastic switches. Older remotes typically have 8 to 12 switches.
- Identify Positions: Each switch can be toggled up or down. Note the current pattern carefully before making any changes.
On the Motor Unit (Power Head)
- Access the Light Cover: Remove the plastic lens cover on the front of the garage door opener motor.
- Locate the Circuit Board: Look for a similar row of switches on the main logic board.
- Check for Labels: Some models have a diagram printed nearby indicating the factory default settings.
Pro Tip: Take a photo of both the remote and the motor unit switch patterns with your smartphone before you start. This serves as a backup if you accidentally mess up the configuration.
Step-by-Step Guide: Matching Remote to Opener
Syncing your remote requires precision. Follow these steps exactly to ensure successful pairing.
Step 1: Power Down for Safety
Although low voltage, it is best practice to unplug the garage door opener from the wall outlet. This prevents accidental activation while you are working on the internal components.
Step 2: Match the Pattern
This is the most critical step. You must make the switch positions on the remote identical to those on the motor unit.
- If Switch #1 on the motor is UP, Switch #1 on the remote must be UP.
- If Switch #5 on the motor is DOWN, Switch #5 on the remote must be DOWN.
Use a small screwdriver or a pen tip to toggle the switches gently. Do not force them, as the plastic tabs are fragile after years of use.
Step 3: Reassemble and Test
- Plug the opener back into the power source.
- Replace the battery cover on the remote (ensure batteries are fresh).
- Stand within 10 feet of the door and press the button.
If the door activates, you have successfully synced the devices. If not, proceed to the troubleshooting section below.
Troubleshooting Common Dip Switch Issues
Even with the correct pattern, older systems can fail. Here are the most common reasons why your older Genie garage door opener remote dip switches might not be working.
| Issue | Possible Cause | Solution |
|---|---|---|
| No Response | Dead Batteries | Replace with fresh alkaline batteries. Corrosion can also block contact. |
| Intermittent Signal | Dirty Contacts | Clean the battery terminals and switch contacts with rubbing alcohol. |
| Wrong Pattern | Human Error | Double-check every single switch against the motor unit. One mistake fails the whole code. |
| Weak Range | Antenna Issue | Ensure the hanging wire antenna on the motor unit is not damaged or wrapped around metal. |
| Switch Stuck | Physical Damage | If a switch feels loose or won’t stay in position, the remote may need replacement. |
The “Learn Button” Confusion
Many users try to press the “Learn” or “Smart” button on newer Genie models. Warning: Most pure dip-switch models do not have a learn button. They rely solely on the physical switch alignment. If your unit has a learn button, it likely uses rolling codes or Intellicode, which is a different programming method entirely.
When to Replace vs. Repair
Deciding whether to fix your old remote or upgrade your entire system depends on several factors.
Reasons to Keep the Old System
- Cost-Effective: Buying a universal dip-switch remote costs between $15–$25, whereas a new opener costs $300+.
- Simplicity: No Wi-Fi setup or app configuration required.
- Reliability: These mechanical systems are less prone to software glitches.
Reasons to Upgrade
- Security Risks: As mentioned, fixed codes are vulnerable to code-grabbing attacks.
- Part Availability: Finding replacement remotes for very old models (pre-1990) is becoming difficult.
- Features: Newer models offer smartphone control, battery backups, and quieter operation.
If you choose to upgrade, consider a Genie model with Aladdin Connect or Intellicode 2 for enhanced security.
FAQ Section

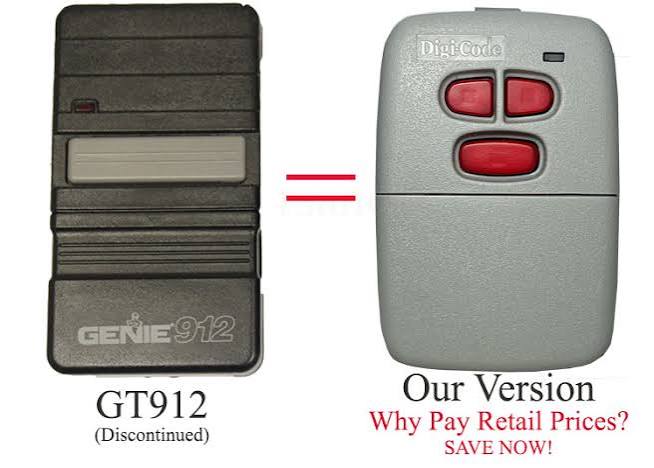

Q1: Can I use a universal remote for my older Genie dip switch opener?
A: Yes, many universal remotes are compatible with Genie dip switch systems. Look for packages that explicitly state compatibility with “Dip Switch” or “Fixed Code” systems. You will need to manually set the switches on the universal remote to match your motor unit.
Q2: My remote works only when I am very close to the door. Why?
A: This usually indicates weak batteries or a damaged antenna on the motor unit. First, replace the batteries. If that fails, check the thin wire hanging from the motor. If it is broken or coiled up too tightly, extend it downward to improve signal reception.
Q3: Is it safe to leave my dip switch garage door opener as is?
A: While functional, it is less secure than modern rolling code systems. If you live in a high-crime area, consider upgrading. For most suburban areas, the risk is low, but be aware that determined thieves can potentially clone the signal.
Q4: What if one of the dip switches is broken?
A: If a switch on the remote is broken, you cannot change that specific bit of the code. However, you can sometimes change the corresponding switch on the motor unit to match the broken state of the remote, provided the motor switch is still functional. If the motor switch is broken, you may need a professional repair or a new unit.
Q5: How many dip switches does a typical Genie remote have?
A: Most older Genie remotes feature either 8, 9, or 12 dip switches. The number of switches determines the number of possible code combinations. More switches mean higher security, though still inferior to modern encryption.
Q6: Can I program multiple remotes to one opener?
A: Absolutely. As long as all remotes have the exact same dip switch pattern as the motor unit, they will all work simultaneously. There is no limit to the number of remotes you can sync, provided they share the identical code.
Conclusion
Dealing with older Genie garage door opener remote dip switches doesn’t have to be a headache. By understanding that the remote and motor unit must mirror each other’s switch positions, you can solve most connectivity issues in minutes. Remember to handle the delicate switches with care, keep your batteries fresh, and always prioritize safety when working with electrical components.
If your system is functioning well, there is no urgent need to upgrade. However, if security is a top concern, transitioning to a modern rolling-code system is a wise investment for the future.
