Installing a garage door opener can feel overwhelming, especially when you want to get it right the first time. Many homeowners struggle with confusing instructions and worry about making costly mistakes during installation. Understanding the correct assembly of Genie garage door opener systems doesn’t have to be complicated when you follow proven steps and expert guidance.
Whether you’re replacing an old unit or installing your first opener, this comprehensive guide will walk you through every critical step. We’ll cover everything from preparation to final testing, ensuring your Genie garage door opener operates safely and efficiently for years to come.
Why Proper Assembly Matters for Your Genie Garage Door Opener
Before diving into the assembly process, it’s crucial to understand why getting it right matters. According to the Consumer Product Safety Commission, improperly installed garage door openers contribute to thousands of injuries annually. The International Door Association reports that 85% of garage door-related accidents stem from incorrect installation or maintenance.
A properly assembled Genie garage door opener provides:
- Enhanced safety for your family and pets
- Extended equipment lifespan (10-15 years with proper care)
- Reduced energy consumption
- Quieter operation
- Reliable performance in all weather conditions
Genie Industries, founded in 1954, has established itself as a trusted name in garage door automation. Their openers feature advanced safety mechanisms, including automatic reverse technology and infrared sensors that meet current federal safety standards.
What Tools and Materials Do You Need?
Gathering the right tools before starting prevents frustrating mid-project trips to the hardware store. Here’s your complete checklist:
Essential Tools:
- Power drill with assorted bits
- Socket wrench set (7/16″ and 9/16″)
- Adjustable wrench
- Level (4-foot recommended)
- Measuring tape
- Screwdrivers (Phillips and flathead)
- Wire strippers
- Pliers
- Stepladder (6-8 feet)
- Assistant (highly recommended for safety)
Materials Included in Most Genie Kits:
- Motor unit and rail assembly
- Mounting brackets and hardware
- Remote controls (typically 2)
- Wall console
- Safety sensors and wiring
- Emergency release cord
- Installation manual
Additional Materials You May Need:
- Concrete anchors (for brick/concrete walls)
- Extension springs (if upgrading from manual door)
- Electrical outlet within 6 feet of motor location
- 14-gauge electrical wire (if extending sensor wires)
How Do You Prepare Your Garage for Installation?
Proper preparation sets the foundation for successful assembly. Follow these essential pre-installation steps:
Step 1: Inspect Your Garage Door Before installing any opener, ensure your door operates smoothly manually. Check that:
- Springs are properly tensioned
- Rollers move freely in tracks
- Tracks are aligned and secure
- Door balances correctly (should stay in place when opened halfway)
Step 2: Choose the Right Location The motor unit should mount:
- At least 7 feet above the floor
- Centered on the garage door
- Within reach of a grounded electrical outlet
- Away from direct sunlight and moisture
Step 3: Clear the Work Area Remove vehicles, storage items, and debris from beneath the installation area. Ensure adequate lighting and ventilation.
Step 4: Read the Manual Thoroughly Each Genie model has specific requirements. Visit Wikipedia’s page on garage door openers to understand general safety standards and industry best practices before proceeding.
Step-by-Step Assembly Instructions
Step 1: Assemble the Rail System

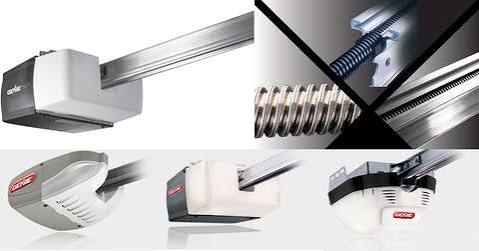

Most Genie openers use a screw-drive or belt-drive rail system. Here’s how to assemble it correctly:
- Lay the rail sections on a clean, flat surface
- Connect rail sections using provided bolts (tighten to 15-20 ft-lbs torque)
- Install the trolley assembly according to your model’s specifications
- Attach the drive mechanism (screw or belt) ensuring proper tension
- Verify smooth trolley movement along the entire rail length
Pro Tip: Apply a thin layer of white lithium grease to screw-drive rails for quieter operation and extended life.
Step 2: Mount the Header Bracket
The header bracket supports the rail assembly and must be securely attached:
- Locate the center point above your garage door
- Mark mounting holes 2-4 inches above the door’s highest point
- Use lag screws for wood framing or concrete anchors for masonry
- Ensure the bracket is perfectly level
- Test stability by applying moderate downward pressure
Step 3: Install the Motor Unit
- With assistance, lift the motor unit to the header bracket
- Secure using provided hanging brackets and bolts
- Connect the rail assembly to the motor coupling
- Verify all connections are tight and secure
- Check that the motor hangs level and centered
Step 4: Attach the Door Bracket
- Position the J-bracket on the top section of your garage door
- Center it horizontally on the door panel
- Use self-tapping screws designed for metal doors
- For wooden doors, pre-drill holes to prevent splitting
- Ensure the bracket allows full door travel without obstruction
Step 5: Connect the Arm Assembly
- Attach the straight arm to the door bracket
- Connect the curved arm to the trolley
- Join both arms using the provided pin and clip
- Adjust arm length so the door opens completely
- Verify the connection allows smooth movement throughout the cycle
Step 6: Install Safety Sensors
Modern Genie openers include infrared safety sensors that prevent the door from closing on objects:
- Mount sensors 6 inches above the floor on each side of the door
- Align sensors so indicator lights show solid (not blinking)
- Run wiring along the wall, securing with clips every 2 feet
- Connect wires to the motor unit following color-coded terminals
- Test by placing an object in the door’s path during closing
Step 7: Wire the Wall Console and Remotes
- Mount the wall console at eye level near the entry door
- Connect wires to designated terminals (usually red and white)
- Program remote controls following the manufacturer’s sequence
- Test all controls for proper operation
- Set force and travel limits according to your door’s specifications
Common Assembly Mistakes to Avoid
Learning from others’ errors can save you time and frustration:
| Mistake | Consequence | Solution |
|---|---|---|
| Incorrect spring tension | Door won’t balance properly | Consult professional for spring adjustment |
| Misaligned sensors | Door reverses unexpectedly | Realign until indicator lights are solid |
| Loose mounting hardware | Excessive vibration and noise | Tighten all bolts to specified torque |
| Improper limit settings | Door doesn’t fully open/close | Adjust travel limits per manual instructions |
| Skipping safety tests | Potential injury hazard | Complete all safety checks before regular use |
How Do You Test and Troubleshoot Your Installation?
After assembly, thorough testing ensures safe operation:
Safety Reverse Test:
- Place a 2×4 board flat on the floor under the door
- Close the door using the wall console
- The door should reverse immediately upon contact
- If it doesn’t, adjust the force settings and retest
Sensor Alignment Test:
- Wave your hand between sensors while door is closing
- Door should stop and reverse direction
- Blinking lights indicate misalignment requiring adjustment
Force Setting Verification:
- Hold the bottom of the door lightly while closing
- Door should reverse with minimal resistance
- Adjust force settings if door continues closing
Remote Range Test:
- Test remotes from various distances and angles
- Replace batteries if range is limited
- Reprogram if remotes fail to respond
Frequently Asked Questions
Q: How long does it take to assemble a Genie garage door opener?
A: Most homeowners complete the assembly in 3-5 hours with an assistant. First-time installers may need 6-8 hours. Professional installation typically takes 2-3 hours. Rushing the process often leads to errors requiring rework, so allocate sufficient time for careful assembly.
Q: Can I install a Genie garage door opener alone?
A: While technically possible, installing alone is not recommended. The motor unit weighs 25-40 pounds and requires precise positioning. An assistant helps with holding components, passing tools, and ensuring safety. If working alone, use sturdy support stands and take extra precautions.
Q: What’s the difference between screw-drive and belt-drive Genie openers?
A: Screw-drive openers use a threaded steel rod, offering durability and fewer moving parts. They perform well in extreme temperatures but produce more noise. Belt-drive models use rubber belts, providing quieter operation ideal for attached garages. Both types offer similar reliability when properly assembled and maintained.
Q: How often should I maintain my assembled Genie opener?
A: Perform basic maintenance every 6 months, including:
- Lubricating moving parts with appropriate garage door lubricant
- Testing safety features (reverse mechanism and sensors)
- Tightening loose hardware
- Inspecting cables and springs for wear
- Cleaning photo-eye sensors with a soft cloth
Annual professional inspection is recommended for comprehensive evaluation.
Q: What warranty covers assembly errors?
A: Genie warranties cover manufacturing defects but not installation errors. Most models include a lifetime motor warranty, 1-year parts warranty, and 1-year labor warranty when professionally installed. DIY installations retain parts and motor warranties but void labor coverage. Keep your receipt and registration information for warranty claims.
Q: Should I hire a professional instead of assembling it myself?
A: Consider professional installation if:
- Your garage door lacks proper balance or has damaged components
- You’re uncomfortable working at heights or with electrical connections
- Local codes require licensed installation
- Your door uses torsion springs (extremely dangerous for DIY)
Professional installation costs $150-$300 but ensures code compliance and optimal performance.
Conclusion
Mastering the correct assembly of Genie garage door opener systems empowers you to enhance your home’s convenience and security. By following these detailed steps, avoiding common mistakes, and prioritizing safety testing, you’ll enjoy reliable operation for years to come.
Remember that patience and attention to detail matter more than speed. Take breaks when needed, double-check measurements, and never skip safety features. Your future self will thank you for doing it right the first time.
