If you’re trying to program your remote or keypad and find yourself asking, “Where is Genie Max Garage Door Opener learn button located?”, you’re not alone. This tiny yet essential button plays a big role in syncing your opener with remotes, wireless keypads, or HomeLink systems in your car. Finding it can be a bit tricky, especially if you’ve never accessed the motor housing before.
In this comprehensive guide, we’ll help you locate the Learn button on your Genie Max garage door opener, explain its function, how to safely access it, and what to do once you find it. Whether you’re installing a new remote or reprogramming an existing system, this guide is designed to walk you through it step by step.
What Is a Learn Button and Why Is It Important?
Before we get into the exact location, it’s helpful to understand what the Learn button actually does.
The Learn Button Function:
- Programs remotes and wireless keypads
- Erases all programmed remotes
- Syncs HomeLink (built-in vehicle garage door buttons)
- Helps with smart home integrations
On Genie Max openers, the Learn button activates the receiver so that it can detect and remember the signal from your remote or keypad. Once programmed, pressing the remote will signal the opener to activate the door.
Types of Genie Max Garage Door Openers and Button Placement
The Genie Max series includes several models like Genie SilentMax, ChainMax, and PowerMax. Each model may have slight variations in the Learn button’s location, but the general principle is the same.
Some Learn buttons are clearly visible, while others are hidden behind light covers or access panels.
Most Common Placement:
- Under the light cover
- Near the antenna wire
- On the back or side panel of the motor housing
- Close to the terminal strip for wall control wires
Where Is Genie Max Garage Door Opener Learn Button Located?
This is the big question. So let’s answer it directly.
General Location:

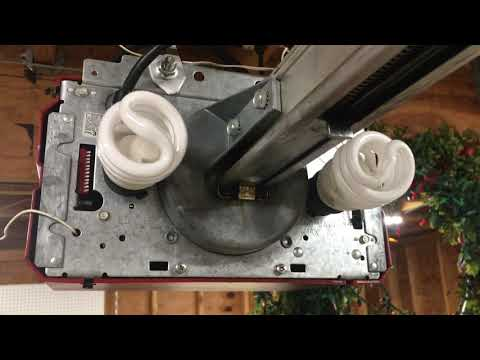

The Learn button on Genie Max garage door openers is typically located beneath the light lens cover on the main motor housing, either on the back panel or near the antenna wire.
Step-by-Step Guide to Locate It:
- Unplug the Opener (Optional but Safer)
While it’s not mandatory to unplug the opener, doing so ensures maximum safety during inspection. - Get a Ladder
You’ll need to reach the main motor housing, which is mounted on the ceiling of your garage. - Remove the Light Cover (if necessary)
Gently pull or unscrew the light lens cover. Some models use clips, while others may require a Phillips-head screwdriver. - Look for a Small Colored Button
Genie Learn buttons are often purple, red, green, or black depending on the model year. It’s usually labeled as “Learn” or “PRGM.” - Identify the Antenna Wire
The Learn button is often close to the antenna wire, a thin hanging wire that helps receive signals from remotes. - Look for a Nearby LED Light
When the Learn button is pressed, an LED indicator light will typically blink to signal programming mode.
Learn Button Colors and Their Meaning
Genie uses various colored Learn buttons depending on the technology type and production year:
| Learn Button Color | Technology Type | Compatibility |
|---|---|---|
| Purple | Intellicode II | Most modern Genie remotes/keypads |
| Green | Intellicode I | Older Genie models |
| Black | Fixed Code (rare) | Very old openers |
| Red/Orange | Security+ or proprietary |
Tip: The color of your Learn button will determine which remote is compatible with your opener. Always match accordingly.
How to Use the Learn Button Once You Find It
Once you’ve answered “Where is Genie Max garage door opener learn button located?”, the next logical step is knowing how to use it.
Programming a Remote:
- Press and release the Learn button.
- An LED light will blink or stay solid for about 30 seconds.
- Press the remote button you want to program within that time.
- Wait for the LED to turn off or blink, indicating success.
Programming a Wireless Keypad:
- Press and hold the program button until the LED blinks.
- Enter the PIN and press “Program” or “Send” depending on your keypad model.
- Wait for confirmation (blinking or a click from the opener).
Syncing to HomeLink (Vehicle):
- Press and hold your vehicle’s HomeLink button.
- Simultaneously press the Genie remote button and hold it.
- Then press the Learn button on the opener.
- After the LED blinks or the opener clicks, your HomeLink is programmed.
Troubleshooting If You Can’t Find the Learn Button
Sometimes it’s not obvious, or the label has faded. Here are a few ways to identify it anyway.
1. Check Your Manual
- Most Genie openers include a diagram of the motor unit. If you’ve lost your manual, you can download one from geniecompany.com.
2. Look for the Antenna Wire
- The Learn button is often located near the wire that hangs from the motor.
3. Look Behind Removable Panels
- If you don’t see the button, check for small screws or clips that might conceal a hidden compartment.
4. Look for an LED Light
- When you press a button on your remote, does any light blink on the opener? That light is usually next to the Learn button.
Why Can’t I Program My Remote Even After Finding the Learn Button?
If you’ve located the Learn button but your remote still isn’t syncing, consider these issues:
- Wrong remote type for the Learn button color
- Old batteries in the remote
- You held the Learn button too long, which erased all programming
- Obstruction or signal interference
- Faulty logic board (rare but possible)
Try resetting the opener or reprogramming from scratch.
Best Practices for Learn Button Usage
- Never hold down the Learn button too long unless you want to erase all remotes.
- Program all remotes and keypads within 30 seconds of pressing Learn.
- Keep your remote and keypad manual handy during setup.
- Test the remote from a distance to ensure strong signal reception.
Frequently Asked Questions (FAQs)
Q: Is the Learn button always under the light cover?
A: In most Genie Max models, yes. Some may have it on a side panel, but it’s almost always near the antenna.
Q: Can I program multiple remotes to one opener?
A: Yes! You can program several remotes or keypads to a single Genie Max opener using the Learn button.
Q: What happens if I press and hold the Learn button too long?
A: Holding the button for 10+ seconds typically erases all paired remotes and keypads.
Q: My Learn button is worn out. Can I replace it?
A: The button is part of the logic board. If it’s physically broken, you may need a logic board replacement or consult a technician.
Conclusion
So, to wrap up: Where is Genie Max garage door opener learn button located? It’s typically under the light cover, near the antenna wire, and is either red, purple, green, or black. This button is vital for programming remotes, syncing smart devices, or connecting your car’s HomeLink system.
Whether you’re installing a new remote or troubleshooting your existing system, locating and using the Learn button properly is the key to seamless garage access.
