Wiring a garage door opener correctly is crucial to ensure its safe and efficient operation. If you have a Genie garage door opener and are wondering how to wire a Genie garage door opener diagram properly, you’ve come to the right place. This detailed guide will walk you through the entire wiring process, providing clear instructions and helpful tips to make your installation smooth and trouble-free.
Understanding the wiring setup can help you avoid common mistakes, prevent damage to the opener, and ensure that all safety features work as intended. Whether you’re a DIY enthusiast or just starting with garage door opener installation, this article will help you master the wiring aspect with confidence.
Why Proper Wiring Is Essential for Your Genie Garage Door Opener
Before diving into the wiring steps, it’s important to understand why wiring matters so much. The wiring of your Genie garage door opener controls various components, including:
- The motor unit that powers the door’s movement
- Safety sensors that prevent the door from closing on objects or people
- Wall-mounted control panels that allow you to operate the door from inside the garage
- External remotes and keypads for convenient access
Incorrect wiring can cause malfunctions, such as the door not responding, safety sensors failing, or even electrical hazards. Following a reliable wiring diagram and instructions guarantees your opener will function correctly and safely.
Essential Tools and Materials Needed Before Wiring
To wire your Genie garage door opener efficiently, gather the following tools and materials:
- Genie garage door opener wiring diagram (specific to your model)
- Wire strippers and cutters
- Screwdrivers (Phillips and flathead)
- Electrical tape
- Wire nuts or connectors
- Drill (if mounting control panels or sensors)
- Voltage tester or multimeter (optional for safety checks)
- Replacement wires (if needed, usually 18-22 gauge)
Having these ready before you start will save time and make the process safer.
How To Wire A Genie Garage Door Opener Diagram – Step-by-Step Instructions

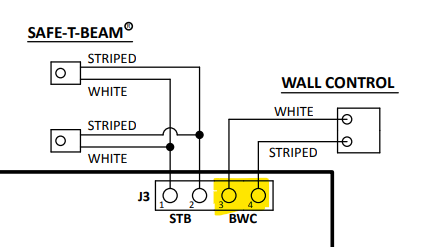

Step 1: Review Your Genie Wiring Diagram Thoroughly
Every Genie model may have slight variations in wiring, so the first step is to locate and study the wiring diagram included in your opener’s manual. This diagram shows the connection points for:
- Motor unit terminals
- Safety sensor wires
- Wall control wires
- Power source connections
Understanding this layout will help you identify where each wire should go.
Step 2: Disconnect Power for Safety
Before working on any electrical connections, unplug the garage door opener or turn off the circuit breaker controlling its power. This precaution protects you from electrical shock and prevents accidental activation.
Step 3: Connect the Wall Control Wires
- The wall control panel typically has two wires: one for the “common” and one for the “push button” input.
- Strip the ends of these wires and attach them to the corresponding terminals on the motor unit, usually marked as “WALL CONTROL” or similar.
- Secure connections with screws or wire nuts as instructed by your diagram.
Step 4: Wire the Safety Sensors
- Genie garage door openers use two safety sensors placed on either side of the garage door near the floor.
- These sensors have pairs of wires—one for power and one for signal.
- Connect the wires from each sensor to the terminals on the motor unit labeled for “SENSOR” or “PHOTO EYES”.
- Pay close attention to polarity markings (+ and -) if indicated.
- Make sure the sensors face each other without obstruction for proper operation.
Step 5: Connect the Motor Unit Power
- The motor unit is powered via a power cord plugged into a standard electrical outlet.
- If your unit requires hardwiring, follow the diagram carefully to connect live, neutral, and ground wires to the appropriate terminals.
- Use wire nuts to secure connections and electrical tape for insulation.
Step 6: Connect External Accessories (Optional)
- If you have additional accessories like wireless keypads or extra remotes, wire or sync them according to the manual.
- Some accessories may connect via specific terminals or require wireless programming.
Step 7: Test the Wiring Setup
- After all connections are made, restore power.
- Test the wall control button to see if the garage door moves up and down.
- Check the safety sensors by obstructing the sensor beam—if wired correctly, the door should not close.
- Test remote controls and keypads if applicable.
Troubleshooting Common Wiring Issues on Genie Garage Door Openers
Sometimes wiring problems occur despite careful installation. Here are common issues and how to resolve them:
- Door doesn’t respond to wall control: Check wall control wire connections and ensure the button is not faulty.
- Safety sensors don’t work: Verify sensor wiring and alignment; clean sensor lenses and ensure no objects block the beam.
- Opener won’t power on: Confirm power source and motor unit wiring.
- Intermittent operation: Inspect wires for damage or loose connections; replace if necessary.
Maintenance Tips for Genie Garage Door Opener Wiring
- Regularly inspect wires for wear, cracks, or exposure.
- Keep wiring away from sharp edges or moving parts.
- Use conduit or protective tubing if wiring is exposed.
- Replace damaged wires promptly to avoid shorts or failures.
Final Thoughts: How To Wire A Genie Garage Door Opener Diagram Correctly
Proper wiring is fundamental to the reliable and safe operation of your Genie garage door opener. Following the manufacturer’s wiring diagram and these step-by-step instructions ensures that your opener, sensors, and controls work perfectly together.
Remember always to prioritize safety by disconnecting power before starting and testing all connections thoroughly. With patience and care, wiring your Genie garage door opener can be a straightforward task that saves you time and money on professional installation.
