If you’re looking to free up overhead garage space and enjoy a smoother, quieter operation, the Genie Wall Mount Garage Door Opener might be exactly what your garage needs. This innovative opener is mounted on the wall next to your garage door rather than on the ceiling, making it a great option for garages with limited overhead clearance or those aiming for a cleaner look.
In this guide, we’ll explore how to install Genie Wall Mount Garage Door Opener, breaking the process into easy-to-follow steps with practical tips. Whether you’re a seasoned DIY enthusiast or a motivated first-timer, this article will help you confidently handle the job.
✅ What Is a Wall Mount Garage Door Opener?
Before we dive into how to install Genie Wall Mount Garage Door Opener, it’s important to understand what makes this type of opener unique.

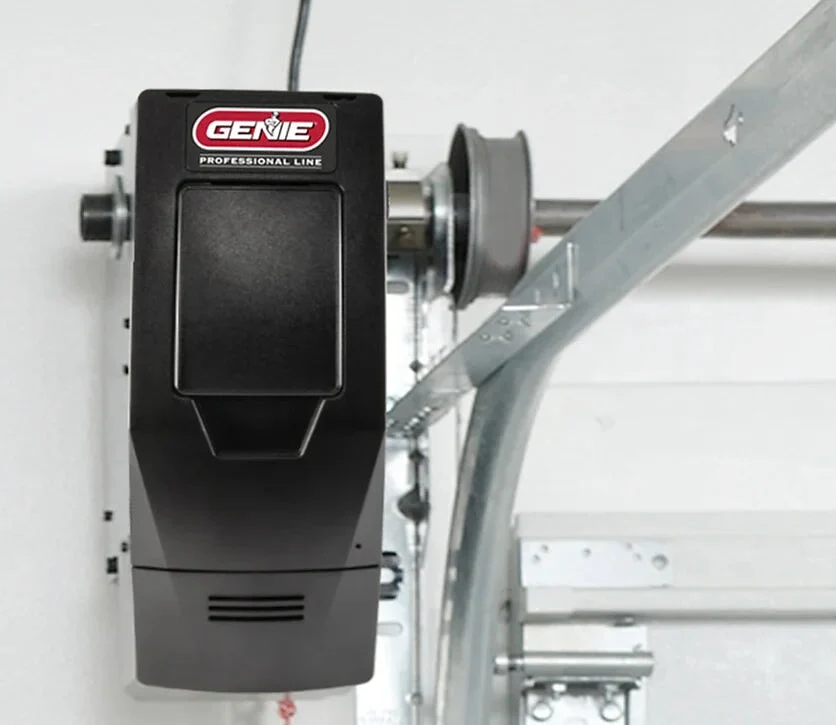

Unlike traditional ceiling-mounted openers that use a trolley and rail system, Genie wall mount openers (also called side-mount or jackshaft openers) are installed directly on the wall beside the garage door. They connect directly to the torsion bar, which opens and closes the door.
⭐ Benefits of Wall Mount Garage Door Openers
- Maximized Overhead Space – Great for garages with storage racks, car lifts, or low ceilings.
- Quieter Operation – Wall-mounted motors create less vibration.
- Sleek, Modern Look – No bulky motor or rails on your garage ceiling.
- Smart Features – Many Genie models offer Wi-Fi, battery backup, and app integration.
🛠 Tools & Materials Needed
To get started with installing your Genie wall mount opener, gather the following tools:
- Genie wall mount garage door opener kit
- Drill and drill bits
- Socket and wrench set
- Screwdrivers (Phillips and flathead)
- Tape measure
- Level
- Stepladder
- Safety glasses
- Stud finder
- Pencil or marker for alignment
- Optional: garage door torsion spring winding bars (for spring adjustments only—seek professional help if needed)
✅ Safety Precautions Before You Begin
- Disconnect power to any existing opener system.
- Ensure your garage door is properly balanced. It should stay in place when lifted halfway. If not, have it serviced before installing your new opener.
- Don’t attempt to adjust torsion springs unless you’re trained to do so—they are under high tension and can cause serious injury.
🔧 How To Install Genie Wall Mount Garage Door Opener
Step 1: Remove Old Opener (If Applicable)
If replacing a ceiling-mounted opener:
- Disconnect it from the door.
- Unplug and unmount the unit.
- Remove any leftover brackets, sensors, and wiring.
Make sure your garage door is operating manually before proceeding.
Step 2: Locate Mounting Position
Find a strong wall location next to the garage door where the wall mount unit can be installed. Use the stud finder to locate a wall stud. This spot must be close to the torsion bar and near a power outlet.
📌 Tip: The ideal mounting location is on the same side as the torsion bar and 6-8 inches below the bar.
Mark the mounting holes using a pencil or marker.
Step 3: Mount the Opener to the Wall
Using the provided hardware:
- Drill pilot holes into the wall studs.
- Attach the opener securely using lag bolts.
- Double-check the unit is level before fully tightening.
This is the foundation of your installation, so ensure it is tight and stable.
Step 4: Attach to the Torsion Bar
The Genie wall mount opener connects directly to the torsion bar using a drive collar. Slide the collar over the torsion shaft, then secure it using the provided set screws.
Make sure the opener is aligned perfectly with the bar and doesn’t put tension on the system.
⚠️ Caution: If the torsion bar is misaligned or warped, the opener may not function correctly and can be damaged. Consult a professional if unsure.
Step 5: Install the Door Lock
Most Genie wall mount models include an automatic door lock for added security.
- Install the lock bracket on the garage door track.
- Connect the lock cable to the opener.
- Test the lock mechanism to ensure smooth operation.
This feature keeps your garage door securely closed, even during power outages or attempted forced entry.
Step 6: Mount the Control Panel and Safety Sensors
- Install the wall-mounted control panel inside the garage using the included screws and wall anchors.
- Run the low-voltage wires along the wall and ceiling to the opener head and connect them to the designated terminals.
- Install the photo-eye safety sensors 6 inches above the ground on both sides of the door track. Align them properly to avoid false triggers.
Use wire staples to neatly secure all wiring and avoid pinching.
Step 7: Power the Unit and Program Settings
- Plug the opener into a grounded outlet.
- Turn on the power.
- Follow the instructions in the user manual to set:
- Door travel limits
- Force settings
- Auto-lock functionality
Many Genie wall mount models include an LED screen on the unit for programming, making setup easier.
Step 8: Connect Smart Features (If Available)
If your model supports Genie Aladdin Connect, follow these steps:
- Download the Aladdin Connect mobile app.
- Create a Genie account.
- Use the app to connect your opener to Wi-Fi.
- Name your garage door and test remote operation.
Now you can open and close your garage door from anywhere using your smartphone or smart home assistant.
🔄 Post-Installation Checklist
- ✅ Test the door’s open/close cycle at least 3 times.
- ✅ Verify the safety sensors are functioning (door should reverse when the beam is broken).
- ✅ Ensure the auto-lock engages properly when the door closes.
- ✅ Program remotes and test them from various distances.
- ✅ Tighten all screws and connections.
🔧 Maintenance Tips for Wall Mount Openers
After installing your Genie Wall Mount Garage Door Opener, follow these maintenance practices:
- Check torsion bar alignment periodically.
- Lubricate moving parts every 6 months with garage door lubricant.
- Clean safety sensors with a soft cloth.
- Test the auto-reverse function monthly.
- Replace backup battery every 1–2 years if applicable.
🛠 Common Troubleshooting Tips
- Door won’t move: Check if the opener is securely attached to the torsion bar. Verify lock is not engaged.
- No power: Ensure the outlet is working. Try resetting the breaker.
- Beeping or flashing lights: Refer to the Genie manual. Some models beep when sensors are misaligned or if the battery is low.
- Smart connection issues: Restart Wi-Fi, ensure strong signal, and reset the app.
📌 Final Thoughts: Installing a Genie Wall Mount Garage Door Opener
Learning how to install Genie Wall Mount Garage Door Opener is a manageable project that brings long-term convenience, noise reduction, and a modern aesthetic to your garage. With attention to detail and a step-by-step approach, you can confidently complete the installation in a few hours.
This smart, space-saving solution is ideal for modern homeowners who want functionality without sacrificing design. As always, when in doubt, don’t hesitate to consult a professional—especially when working near garage door torsion systems.
