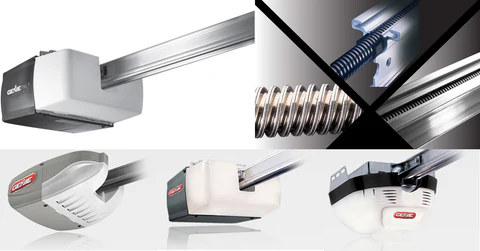

When it comes to reliable garage door openers, Genie has long been a trusted brand. Among its most durable options is the screw drive opener, a system that uses a threaded steel rod to lift and lower your garage door. Many homeowners prefer this style because it’s strong, dependable, and requires less maintenance compared to belt or chain drives.
If you’re searching for how to install Genie garage door with screw opener, this guide will walk you through every step. From the tools you’ll need to the final safety checks, we’ll cover everything in detail so you can complete the installation confidently, even if it’s your first time.
Why Choose a Genie Screw Drive Opener?
Before diving into how to install Genie garage door with screw opener, let’s explore why this model is popular:
- Durability – Fewer moving parts mean less wear and tear over time.
- Powerful Performance – Handles heavier garage doors with ease.
- Reduced Maintenance – Unlike belt or chain drives, screw drive systems don’t require frequent adjustments.
- All-Weather Reliability – Performs consistently in hot, cold, or humid conditions.
- Straightforward Design – Easier to troubleshoot and repair if needed.
With these benefits, many homeowners find the screw opener an excellent long-term investment.
Tools and Materials You’ll Need
Before starting the installation, gather the following tools to make the process efficient:
- Power drill with bits
- Screwdrivers (Phillips and flathead)
- Adjustable wrench or socket set
- Step ladder
- Stud finder
- Level
- Tape measure
- Hammer
- Pliers
- Safety glasses and gloves
It’s also important to have your Genie installation manual on hand for reference.
Preparation Before Installation
Proper preparation is key when learning how to install Genie garage door with screw opener.
- Check Garage Door Balance – Disconnect the door from any existing opener and test it manually. A properly balanced door should stay open halfway without falling.
- Clear the Work Area – Move vehicles, bikes, and tools out of the way to create a safe workspace.
- Locate Power Source – Ensure there’s a nearby ceiling outlet for the opener. Avoid using extension cords.
- Measure and Mark – Identify the center point above the door where the opener will align.
- Review Safety Instructions – Familiarize yourself with Genie’s guidelines, especially regarding Safe-T-Beam sensor installation.
Step-By-Step Guide: How To Install Genie Garage Door With Screw Opener
Here’s the detailed breakdown of the installation process:
Step 1: Assemble the Rail and Screw Drive
- Lay out the rail sections in order on the ground.
- Connect them as instructed in the manual, ensuring the screw rod threads properly through the entire length.
- Secure the couplers tightly to prevent movement during operation.
Step 2: Attach the Rail to the Powerhead
- Connect the completed rail assembly to the opener’s motor head.
- Use the supplied bolts and fasteners to lock it firmly into place.
- Ensure the screw drive is aligned straight.
Step 3: Install the Header Bracket
- Measure and mark the center of the garage door above the header.
- Use a stud finder to locate solid framing.
- Secure the bracket with lag screws.
Step 4: Position the Opener and Mount It
- Lift the front end of the rail and attach it to the header bracket with a clevis pin.
- Rest the motor head on a ladder toward the back of the garage.
- Secure it to the ceiling joists with angle iron brackets and lag bolts.
Step 5: Install the Door Bracket and Arms
- Attach the door bracket to the top section of the garage door.
- Connect the curved and straight arms from the carriage to the door bracket.
- Ensure movement is smooth without binding.
Step 6: Wire the Safe-T-Beam Sensors
- Mount sensors on both sides of the garage door about 5–6 inches above the floor.
- Point them directly at each other for accurate alignment.
- Run the low-voltage wires neatly along the wall and connect them to the opener terminals.
Step 7: Install the Wall Console
- Mount the control console inside the garage, at least 5 feet above the floor.
- Run the wires to the opener unit and connect as directed.
Step 8: Power the Opener and Program Settings
- Plug the unit into the ceiling outlet.
- Set the open and close travel limits using the programming buttons.
- Adjust force sensitivity to ensure the door reverses when meeting resistance.
Step 9: Test Operation and Safety Features
- Run a full open-and-close cycle to check movement.
- Place an object under the door to test automatic reversal with the sensors.
- Pull the emergency release cord to confirm manual operation.
Tips for Installing a Screw Drive Opener
When working through how to install Genie garage door with screw opener, keep these helpful tips in mind:
- Work with a Partner – Lifting and aligning the rail is easier with two people.
- Double-Check Alignment – A straight rail ensures smooth screw movement.
- Lubricate Lightly – Apply Genie screw drive lubricant for optimal performance.
- Label Wires – Helps avoid confusion during sensor and console connections.
Common Mistakes to Avoid
- Improper Sensor Alignment – Causes frequent malfunctions and prevents the door from closing.
- Skipping Door Balance Check – An unbalanced door puts excessive strain on the motor.
- Overtightening Screws – May strip brackets or damage the opener frame.
- Incorrect Limit Settings – Leads to doors slamming or failing to close completely.
Benefits of DIY Installation
Completing how to install Genie garage door with screw opener on your own comes with many advantages:
- Save on Costs – Professional installation can run $200 or more.
- Hands-On Knowledge – You’ll understand how the opener works, making troubleshooting easier.
- Satisfaction – A sense of accomplishment comes with finishing a big home improvement task.
Maintenance Tips After Installation
To keep your opener running smoothly:
- Inspect the screw drive annually and apply recommended lubricant.
- Test safety sensors monthly.
- Check and tighten mounting hardware twice a year.
- Replace remote batteries when needed.
Conclusion
Installing a garage door opener may seem intimidating, but learning how to install Genie garage door with screw opener is manageable with the right preparation and patience. By following these step-by-step instructions—assembling the rail, securing the opener, wiring the sensors, and testing safety features—you’ll end up with a reliable system that enhances both convenience and security.
The Genie screw drive opener is designed for long-lasting performance, and with your successful installation, you’ll enjoy smooth, powerful, and dependable garage door operation for years to come.
