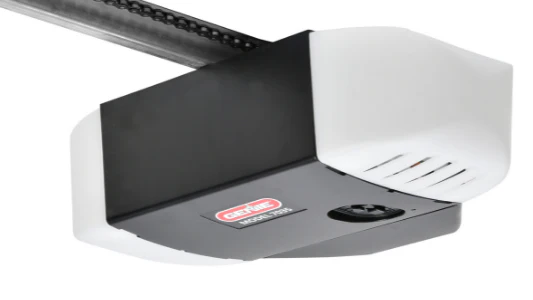

Installing a garage door opener can feel like a daunting task, especially when dealing with a model packed with features like the Genie Garage Door Opener Model 7055-Tkv. Known for its quiet belt drive, powerful motor, and smart home compatibility, this opener is a favorite among homeowners who want reliability and convenience.
If you’re asking yourself how to install Genie Garage Door Opener Model 7055-Tkv, you’ve come to the right place. This guide provides a detailed, step-by-step breakdown of the installation process, from preparation to final testing. Whether you’re a seasoned DIYer or tackling your first major project, following these instructions will help you complete the job safely and efficiently.
Why Choose the Genie Garage Door Opener Model 7055-Tkv?
Before jumping into how to install Genie Garage Door Opener Model 7055-Tkv, it’s helpful to understand what makes this model stand out:
- Quiet Belt Drive – Perfect for attached garages, the belt drive system minimizes noise.
- Powerful DC Motor – Smooth operation that handles most residential garage doors with ease.
- Smart Home Ready – Works with Aladdin Connect for app-based control.
- Safety and Security – Includes Safe-T-Beam sensors to prevent accidents.
- Durable Build – Designed for long-term reliability with minimal maintenance.
These features make the Genie 7055-Tkv not just a functional tool, but a long-lasting investment for your home.
Tools and Materials Needed
To successfully complete how to install Genie Garage Door Opener Model 7055-Tkv, you’ll need the following tools:
- Power drill with assorted bits
- Screwdrivers (flathead and Phillips)
- Adjustable wrench or socket set
- Step ladder
- Level
- Tape measure
- Stud finder
- Pliers
- Hammer
- Safety glasses and gloves
Also, keep the instruction manual that comes with the opener nearby for reference.
Preparation Before Installation
Good preparation makes the installation process smoother and safer.
- Check the Garage Door Balance – Disconnect the opener (if you have one) and manually lift the door. It should stay open halfway without assistance.
- Clear Work Area – Make sure ladders and tools can move around the garage without obstacles.
- Locate Power Source – The opener requires a grounded outlet in the ceiling. Avoid using extension cords.
- Measure Ceiling Height – Ensure there’s adequate clearance for the rail and motor unit.
- Review Safety Precautions – Familiarize yourself with Genie’s safety warnings, particularly regarding sensor placement.
Step-By-Step Guide: How To Install Genie Garage Door Opener Model 7055-Tkv
Here’s a detailed walkthrough for installing the opener:
Step 1: Assemble the Rail and Belt System
- Lay the rail sections on the ground in sequence.
- Snap or bolt them together as instructed.
- Feed the belt along the rail, attaching it to the carriage and pulley system.
- Adjust belt tension as specified in the manual.
Step 2: Attach the Rail to the Motor Unit
- Secure the rail assembly to the motor head using the supplied fasteners.
- Ensure the connection is tight and aligned straight.
Step 3: Install the Header Bracket
- Mark the center point above the garage door.
- Use a stud finder to locate solid framing.
- Attach the header bracket securely with lag screws.
Step 4: Mount the Opener in Position
- Lift the rail and connect it to the header bracket with a clevis pin.
- Place the motor unit on a ladder toward the back of the garage.
- Use perforated angle iron to hang and stabilize the opener from the ceiling joists.
Step 5: Install the Door Bracket and Connecting Arms
- Attach the door bracket to the top section of your garage door.
- Connect the curved and straight arms between the door bracket and the carriage.
- Fasten securely but allow free movement.
Step 6: Wire the Safe-T-Beam Sensors
- Mount sensors on both sides of the garage door, 5–6 inches above the floor.
- Point them directly at each other to align the infrared beam.
- Route and secure the wiring neatly along the wall to the opener.
Step 7: Connect the Wall Console
- Mount the wall console near the garage entry door, at least 5 feet above the floor.
- Run low-voltage wires to the opener’s terminals and attach securely.
Step 8: Power Up and Program the Limits
- Plug the motor unit into the outlet.
- Follow the Genie instructions to set the open and close travel limits.
- Adjust force settings so the door reverses when hitting resistance.
Step 9: Test Safety Features and Remote Controls
- Block the door’s path to ensure the sensors reverse the door immediately.
- Test the emergency release cord.
- Program and test the remote controls and wireless keypad.
Tips for a Smooth Installation
When working on how to install Genie Garage Door Opener Model 7055-Tkv, these tips will help:
- Have a Partner – Lifting the rail into place is easier with two people.
- Use a Level – Ensures the rail is aligned straight for smooth operation.
- Don’t Skip Testing – Run multiple cycles to confirm proper movement.
- Organize Hardware – Lay out screws and bolts in labeled groups to avoid confusion.
Common Mistakes to Avoid
- Improper Sensor Placement – Misalignment can cause the door to stop unnecessarily.
- Skipping Door Balance Test – An unbalanced door puts extra stress on the motor.
- Incorrect Belt Tension – Too loose and the door won’t move correctly; too tight and the belt may wear quickly.
- Using Extension Cords – Unsafe and not recommended by Genie.
Benefits of DIY Installation
Completing how to install Genie Garage Door Opener Model 7055-Tkv yourself has several advantages:
- Saves Money – Professional installation may cost $200 or more.
- Hands-On Knowledge – You’ll know how the system works for future maintenance.
- Sense of Accomplishment – A rewarding project that improves your home.
Conclusion
Learning how to install Genie Garage Door Opener Model 7055-Tkv doesn’t have to be overwhelming. With preparation, the right tools, and step-by-step guidance, you can successfully assemble, mount, wire, and program your opener.
By carefully following these steps—assembling the rail, attaching the opener, installing sensors, wiring controls, and testing safety features—you’ll have a fully functional garage door opener that provides convenience and peace of mind for years to come.
Whether you’re upgrading an old system or installing one for the first time, the Genie 7055-Tkv offers the perfect combination of performance, safety, and quiet operation.
