If you’re looking to upgrade your garage door opener for quieter and more efficient performance, a Genie Belt Drive garage door opener is an excellent choice. However, knowing how to install Genie belt drive garage door opener correctly is crucial to ensuring it functions safely and reliably. This detailed, step-by-step guide will walk you through the entire installation process, from preparation to programming, so you can confidently install your new Genie belt drive opener yourself.
Why Choose a Genie Belt Drive Garage Door Opener?
Before we get into the installation process, it’s important to understand why the Genie Belt Drive garage door opener stands out. Unlike chain-driven openers, belt drive models use a reinforced rubber belt instead of a metal chain, providing quieter, smoother operation with less vibration. This makes it ideal for homes where the garage is adjacent to living spaces or bedrooms.
Key benefits include:
- Whisper-quiet operation
- Durable and low maintenance
- Smooth start and stop movements
- Reliable power for heavier doors
- Advanced safety features
Knowing these benefits helps you appreciate why properly installing your Genie belt drive opener matters.
Tools and Materials You Will Need
To install your Genie Belt Drive garage door opener, gather these tools and supplies beforehand:

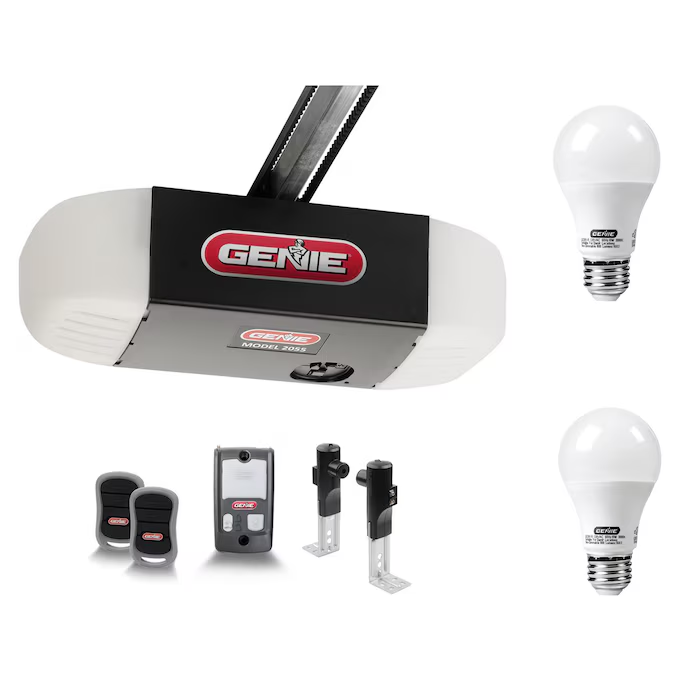

- Genie Belt Drive garage door opener kit (motor unit, rail, belt, trolley, remotes)
- Power drill with bits
- Screwdrivers (Phillips and flathead)
- Adjustable wrench and socket set
- Tape measure
- Level
- Ladder or step stool
- Pencil or marker
- Wire stripper/cutter (for safety sensor wiring)
- Safety glasses and gloves
- Anchors and mounting hardware (usually included)
Having these on hand will streamline the installation and reduce interruptions.
How To Install Genie Belt Drive Garage Door Opener: Step-by-Step Instructions
Step 1: Prepare Your Workspace and Garage Door
- Clear the garage workspace and ensure ample lighting.
- Check the garage door to confirm it operates smoothly manually. Fix any issues with springs or rollers before installation.
- Locate a grounded power outlet near the ceiling for the opener. Use a licensed electrician if you need to install or relocate one.
Step 2: Assemble the Rail and Belt
- Unpack the rail and motor unit from the box.
- Slide the belt onto the rail according to the manufacturer’s instructions, ensuring it aligns properly with the trolley.
- Attach the rail to the motor unit securely with bolts.
Step 3: Mount the Header Bracket
- Measure approximately 2 inches above the top of the garage door and mark the center point on the wall.
- Secure the header bracket to the wall using lag bolts. This bracket will support the front of the rail and bear the door’s force during operation.
Step 4: Install the Rail and Motor Assembly
- Lift the assembled rail and motor unit into place with assistance.
- Attach the rail’s end to the header bracket with the provided hardware.
- Support the motor unit near the ceiling using a ladder or scaffolding.
- Check that the rail is perfectly horizontal with a level and adjust as needed.
Step 5: Attach the Door Arm
- Connect the curved arm to the trolley on the rail.
- Attach the straight arm to the garage door’s top bracket.
- Secure all connections tightly with the provided bolts and cotter pins to prevent loosening.
Step 6: Install Safety Sensors
- Safety sensors must be installed on both sides of the door, approximately 6 inches above the floor.
- Mount the sensors facing each other, ensuring the indicator lights show a solid connection.
- Run the sensor wires along the door frame and connect them to the motor unit’s sensor terminals.
Step 7: Plug In and Power Up
- Connect the motor unit to the grounded electrical outlet.
- Use a GFCI outlet if possible for additional safety.
- Avoid using extension cords.
Step 8: Program Your Genie Belt Drive Garage Door Opener Remote
- Locate the “Learn” button on the motor unit, typically near the antenna wire.
- Press the “Learn” button once; the indicator light will turn on.
- Within 30 seconds, press and hold the button on your remote control.
- The opener light may blink or the door may move slightly, indicating successful programming.
Step 9: Test the Opener
- Test the opener by using the remote to open and close the garage door several times.
- Verify the door stops and reverses when the safety sensors detect an obstruction.
- Adjust travel limits or force settings if the door doesn’t open or close fully.
Tips for a Successful Installation
- Always wear safety glasses and gloves during installation.
- Use sturdy ladders and have a helper assist with lifting heavy components.
- Follow the manufacturer’s instructions closely for assembly and wiring.
- Double-check all bolts and fasteners to prevent loosening during operation.
- Keep the safety sensors clean and aligned for optimal function.
Troubleshooting Common Installation Issues
Even with careful installation, you may face minor hiccups:
- Opener does not run: Check power supply, wiring, and remote programming.
- Door reverses unexpectedly: Align safety sensors and check for obstructions.
- Noisy operation: Inspect belt tension and lubricate rollers if necessary.
- Remote won’t program: Reset the motor unit and try programming again within the time window.
Maintaining Your Genie Belt Drive Garage Door Opener
Proper maintenance extends the life of your opener:
- Regularly clean and lubricate door rollers and hinges.
- Test safety sensors monthly.
- Replace remote batteries as needed.
- Keep the motor unit free from dust and debris.
Why Proper Installation Matters
Installing your Genie belt drive garage door opener properly ensures:
- Smooth, quiet door operation without jerks or stalls.
- Reliable remote and sensor communication.
- Enhanced safety for your family and property.
- Reduced repair needs and longer equipment life.
Conclusion: How To Install Genie Belt Drive Garage Door Opener With Confidence
Knowing how to install Genie belt drive garage door opener correctly saves you time and money while enhancing your home’s convenience and security. By carefully following the steps outlined above, you can achieve a professional-level installation even if you’re a DIY enthusiast. Always prioritize safety, double-check connections, and keep your opener maintained to enjoy years of smooth, quiet operation.
