Genie Garage Door Openers 20113R Screw Drive Limit Switch: Essential Guide for Repair, Replacement & Functionality

If you’re dealing with issues related to your garage door opener not stopping at the right position, or if the door won’t fully open or close, there’s a high chance your limit switch is to blame—specifically, the Genie Garage Door Openers 20113R Screw Drive Limit Switch. This small but crucial part controls the range of motion in your garage door system and ensures your door opens and closes safely and precisely.

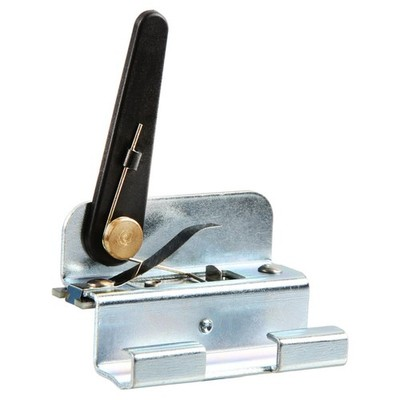

Genie Garage Door Openers 20113R Screw Drive Limit Switch

In this comprehensive guide, we’ll explore everything you need to know about the Genie Garage Door Openers 20113R Screw Drive Limit Switch, including what it does, how it works, signs of failure, replacement steps, compatibility, and more. Whether you’re a DIY homeowner or a professional technician, understanding this component is key to maintaining a fully functional garage door system.


What Is a Limit Switch in a Garage Door Opener?

A limit switch is an electromechanical device that tells the garage door opener when to stop moving the door. It prevents the motor from running indefinitely and helps ensure the door doesn’t slam shut or try to go beyond its tracks. It also maintains safety and protects the opener motor from damage.


Why the Genie Garage Door Openers 20113R Screw Drive Limit Switch Matters

The Genie 20113R limit switch is specifically designed for Genie screw drive garage door openers, which use a threaded steel rod (screw drive) to raise and lower the garage door. Unlike chain or belt drives, screw drive openers rely heavily on precise motion control, and the 20113R limit switch ensures the motor knows when to stop in both directions.

Here’s why it’s important:

  • Prevents door from over-traveling
  • Protects the screw drive motor from burnout
  • Ensures accurate and safe door positioning
  • Supports the opener’s auto-reverse and safety functions

Genie Garage Door Openers 20113R Screw Drive Limit Switch — Features and Functionality

Let’s dive into the specific features and how the Genie Garage Door Openers 20113R Screw Drive Limit Switch operates in your opener system.

✅ Compatibility

The 20113R limit switch is compatible with a wide range of Genie screw drive garage door openers, including:

  • Genie Pro Series
  • IS550/IS900 models
  • Excelerator screw drive units
  • Certain older Genie models with screw drive systems from the 1990s and early 2000s

✅ Function

This limit switch assembly includes:

  • Upper and lower limit contacts
  • A moving actuator tab
  • Wire leads to connect with the opener’s control board

As the screw drive turns, the actuator tab moves along a track. When it reaches a certain point, it triggers either the open or close limit switch, telling the motor to stop moving.

✅ Installation Notes

The unit is typically mounted inside the rail assembly and connects via color-coded wiring. While replacing it isn’t overly complex, proper alignment and calibration are essential for smooth operation.


Symptoms of a Faulty 20113R Limit Switch

If your Genie screw drive garage door opener is showing any of the following symptoms, your limit switch might need inspection or replacement:

  • 🚪 Door doesn’t stop at the correct position
  • 🔁 Door reverses suddenly when opening or closing
  • ⚠️ Opener motor keeps running after the door stops
  • 🔄 Inconsistent operation or failure to close/open completely
  • 🔌 Opener works manually but not with the remote

A failed limit switch can disrupt the balance between safety and performance, so early detection is important.


How to Replace the Genie 20113R Limit Switch (Step-by-Step)

Warning: Always disconnect the power before servicing a garage door opener.

Tools You’ll Need:

  • Screwdriver set
  • Needle-nose pliers
  • Replacement 20113R limit switch
  • Electrical tape (optional)

Replacement Steps:

  1. Unplug the opener from the power source to avoid electric shock.
  2. Remove the screw drive rail cover to access the limit switch assembly.
  3. Disconnect the existing limit switch from its wiring harness. Take note of the wire color codes.
  4. Unscrew and slide out the old switch from its bracket.
  5. Insert the new 20113R limit switch in the same position, ensuring the actuator aligns with the carriage.
  6. Reconnect the wires to the new switch.
  7. Reassemble the rail housing and plug the opener back in.
  8. Test door operation and adjust the limit switch if needed.

Some Genie models also allow for manual fine-tuning of the travel limits using knobs or dials after switch replacement.


Where to Buy a Genuine Genie Garage Door Openers 20113R Screw Drive Limit Switch

When shopping for a replacement, be sure to buy a genuine Genie OEM part to avoid compatibility or durability issues.

Trusted sources include:

  • Genie’s official website
  • Home improvement stores (Lowe’s, Home Depot)
  • Online marketplaces (Amazon, eBay)
  • Local garage door repair suppliers

Look for the part number 20113R in the product description to ensure accuracy.


How Long Does a 20113R Limit Switch Last?

Typically, a limit switch can last 5–10 years, depending on usage, environment, and maintenance. Frequent operation or exposure to moisture/dust may reduce lifespan. Regular inspection helps catch potential failures before they cause door damage or motor issues.


Can You Upgrade or Replace It with Another Switch?

The Genie Garage Door Openers 20113R Screw Drive Limit Switch is uniquely designed for specific models. While similar switches may exist, they won’t necessarily function correctly unless they are:

  • Compatible with screw drive models
  • Correct voltage and actuator size
  • Match the mounting configuration

Upgrading to a newer opener model is an option if your current system is outdated or hard to find parts for.


Preventive Maintenance Tips

To extend the life of your limit switch and screw drive system:

  • Lubricate the screw drive with Genie screw drive lubricant every 6 months
  • Keep the rail and carriage clean
  • Avoid forcing the door open or closed manually
  • Test the limit switch function quarterly
  • Check wires for signs of wear or corrosion

Professional Help vs. DIY

While many homeowners can successfully replace the limit switch themselves, it’s best to call a garage door technician if:

  • You’re unfamiliar with opener mechanics
  • The issue involves wiring or circuit boards
  • The opener is older than 15 years
  • Your door is very heavy or custom-built

Proper replacement ensures not only functionality but safety—improper limits can lead to door damage or injury.


Safety Considerations

Remember, the limit switch is a safety component. It’s crucial for the auto-reverse feature and prevents your garage door from crushing objects (or people) in its path. A non-functioning or misaligned limit switch compromises the opener’s ability to detect obstructions and can result in legal or repair costs if someone is hurt.


Conclusion: Genie Garage Door Openers 20113R Screw Drive Limit Switch is Small but Vital

In the world of garage door openers, few parts are as understated yet as critical as the limit switch—and Genie’s 20113R screw drive limit switch is a testament to that importance. It controls how far your door opens and closes, protects your motor, and ensures your door operates safely every day.

If your Genie screw drive opener is acting up, this small part could be the solution. By understanding its role, knowing how to replace it, and keeping it well-maintained, you ensure long-term performance and safety for your garage system.

So, next time your garage door stops working properly, don’t overlook the little things—because sometimes, it’s the smallest switch that makes the biggest difference.
