If your garage door opener works but the wall control is unresponsive, outdated, or confusing, you’re not alone. Many homeowners search for Genie Garage Door Opener Series II Wall Console solutions when buttons stop working or features don’t behave as expected. This in-depth guide explains what the Series II wall console is, how it works, how to install it correctly, and how to troubleshoot common problems—so you can restore safe, reliable access to your garage.
What Is the Genie Garage Door Opener Series II Wall Console?

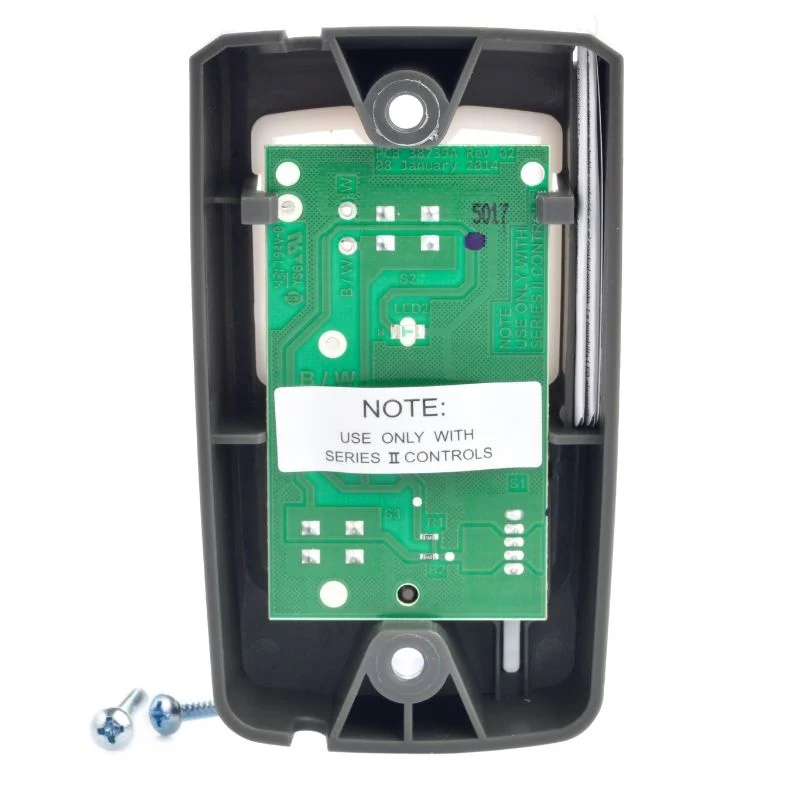

The Genie Garage Door Opener Series II Wall Console is a hardwired wall-mounted control panel designed to operate compatible Genie garage door openers. Unlike handheld remotes, the wall console provides direct control, safety features, and system status from inside the garage.
Key roles of the Series II wall console include:
- Opening and closing the garage door
- Activating the garage light
- Locking out remote controls (vacation/lock mode)
- Providing system feedback
It’s commonly installed near the interior garage entry door for convenience and safety.
Why the Series II Wall Console Is Important
While remotes and smart apps are convenient, the wall console is still the primary control interface for many Genie systems.
Key Benefits
- Always available (no batteries required)
- Essential for programming and diagnostics
- Built-in safety and lockout features
- Reliable wired connection
📊 Garage door service data shows that wall console issues account for a significant portion of “opener not working” service calls, often due to wiring or compatibility misunderstandings.
Genie Garage Door Opener Series II Wall Console: Core Features
1. Open / Close Control
A single large button allows easy door operation, even with gloves or limited visibility.
2. Light Control
Manually turn the opener’s light on or off without opening the door.
3. Lock (Vacation) Mode
Disables all remote controls for added security when you’re away.
4. LED Indicator Lights
Provides visual feedback for power, lock mode, and system status.
5. Hardwired Reliability
No wireless interference or battery replacement required.
Compatibility: What Openers Work With the Series II Wall Console?
One of the most common questions homeowners ask is whether the Genie Garage Door Opener Series II Wall Console will work with their existing opener.
Generally Compatible With
- Genie Series II garage door openers
- Select Genie screw-drive and chain-drive models
- Systems designed for 2-wire wall controls
⚠️ Important:
The Series II wall console is not universal. Using it with incompatible Genie models or other brands can cause malfunction or no response at all.
If you’re unsure, check the opener’s model number or consult the manufacturer documentation. Background information on garage door openers and their components can also be found on Wikipedia (https://www.wikipedia.org).
Series II Wall Console vs. Standard Wall Button
| Feature | Series II Wall Console | Basic Wall Button |
|---|---|---|
| Open/Close | Yes | Yes |
| Light Control | Yes | Sometimes |
| Lock/Vacation Mode | Yes | No |
| Status Indicators | Yes | No |
| Programming Support | Limited | Minimal |
➡️ The Series II console offers more control and security than a basic wall button.
Where Should the Wall Console Be Installed?
Correct placement is critical for safety and usability.
Recommended Installation Location
- Inside the garage
- At least 5 feet above the floor
- Within clear sight of the garage door
- Away from moving parts
This height keeps the console out of reach of children while remaining accessible to adults.
Step-by-Step Installation Guide
Installing a Genie Garage Door Opener Series II Wall Console is a manageable DIY project for many homeowners.
Tools Needed
- Phillips screwdriver
- Wire stripper
- Low-voltage bell wire (2-conductor)
- Drill (optional)
Installation Steps
- Power Off the Opener
Unplug the garage door opener to prevent electrical issues. - Remove the Old Wall Console
Note wire placement before disconnecting. - Prepare the Wires
Strip about ½ inch of insulation from each wire end. - Connect the Series II Wall Console
- Insert wires into the terminal screws
- Polarity usually does not matter for Genie wall controls
- Mount the Console
Secure it to the wall using provided screws. - Restore Power
Plug the opener back in. - Test Operation
Press the door button, light button, and lock function.
⏱️ Average install time: 15–30 minutes
🌡️ Ideal working temperature: 68–82°F (20–28°C)
Common Problems and Troubleshooting
Wall Console Not Working at All
- Check for loose or broken wires
- Verify compatibility with your opener
- Confirm power to the opener
Door Works, But Light Button Doesn’t
- Feature may not be supported by your opener
- Internal console switch may be faulty
Remote Controls Stop Working
- Lock/Vacation mode may be enabled
- Disable lock mode on the wall console
Intermittent Operation
- Damaged low-voltage wiring
- Staples pinching the wire inside the wall
💡 Tip: Most wall console issues are caused by wiring faults, not the console itself.
Safety Features You Should Know
The Genie Garage Door Opener Series II Wall Console plays a role in overall garage safety.
Key Safety Contributions
- Prevents unauthorized access via lock mode
- Ensures manual control if remotes fail
- Supports safer daily operation
Always ensure the door’s photo-eye sensors and auto-reverse system are functioning properly as well.
Maintenance and Care Tips
Wall consoles require minimal maintenance, but basic care helps ensure longevity.
Best Practices
- Keep the console clean and dry
- Inspect wiring annually
- Avoid painting over buttons or LEDs
With proper care, a wall console can last 10+ years.
Replacement vs. Repair: Which Is Better?
| Option | When to Choose |
|---|---|
| Repair wiring | Loose or damaged wires |
| Replace console | Buttons unresponsive, cracked housing |
| Upgrade console | Need more features or reliability |
Replacement is often inexpensive and faster than troubleshooting aging components.
How Much Does a Genie Series II Wall Console Cost?
Typical US Pricing
- Replacement console: $25–$50
- Professional installation: $75–$150
For most homeowners, DIY replacement offers excellent value.
Who Should Use the Genie Garage Door Opener Series II Wall Console?
This wall console is ideal for:
- Homeowners with compatible Genie openers
- Users who want added security via lock mode
- Anyone replacing a faulty or outdated wall control
It’s especially useful in households where reliable, always-on control matters more than smart features.
FAQ: Genie Garage Door Opener Series II Wall Console
Is the Genie Series II wall console universal?
No. It is designed for specific Genie garage door opener models only.
Does it require batteries?
No. It is powered directly by the opener through low-voltage wiring.
Can I install it myself?
Yes. Most homeowners can install it in under 30 minutes.
Why won’t my remote work after installation?
The lock/vacation mode may be activated on the wall console.
Can this wall console control multiple doors?
No. Each console controls one garage door opener.
Conclusion
The Genie Garage Door Opener Series II Wall Console is a small but essential component that plays a big role in garage safety, reliability, and daily convenience. With proper installation, compatibility checks, and basic maintenance, it provides years of dependable service.
