If your Genie garage door opener suddenly stops working, opens and closes intermittently, or doesn’t respond at all, the culprit may be a faulty Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R. While this component may seem like just another piece of hardware, it is the brain of your garage door opener, controlling all the essential functions.

This in-depth guide will walk you through everything you need to know about the Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R, including how it works, common signs of failure, how to replace it, and where to buy a reliable replacement.
What is the Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R?

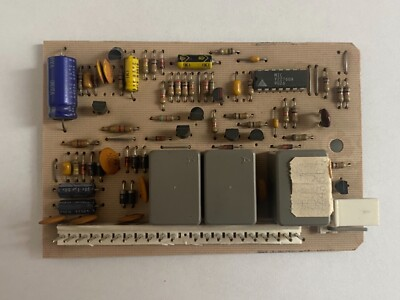

The Genie Sequencer Circuit Board (part numbers 24350S and 20121R) is an essential internal control board found in select Genie garage door openers. It handles the sequencing logic, which includes:
- Activating the motor
- Responding to remote and wall controls
- Controlling safety sensors
- Handling power to the lights
- Managing door travel limits
Without a functioning sequencer board, your opener cannot reliably open or close the garage door.
This specific board is typically found in older models like Genie ISL950, ISL980, and similar screw-drive openers. While these units are durable, over time, power surges, wear and tear, or faulty relays can cause the sequencer board to fail.
Common Symptoms of a Faulty Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R
Before replacing the sequencer board, you’ll want to ensure it’s really the problem. Here are common symptoms that point to a defective Genie circuit board:
1. Opener Doesn’t Respond at All
If your opener shows no lights, no sounds, and doesn’t react to the remote or wall button, the board may be completely dead.
2. Intermittent Function
Sometimes the opener will work, then stop, then work again without warning. This behavior often indicates a failing relay or capacitor on the board.
3. Door Reverses on Its Own
If the garage door opens and immediately reverses or stops halfway, and your safety sensors are aligned, the issue could stem from the logic board.
4. Burnt Smell or Scorch Marks
Open the opener housing and inspect the board. Signs of burned components, scorching, or bulging capacitors indicate circuit failure.
5. Lights Flicker or Don’t Work
Since the circuit board powers the internal lights, flickering or failing lights (unrelated to the bulb) can point to a sequencer board issue.
Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R: Why It Matters
Your Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R is more than just a control unit—it integrates all of the safety, logic, and power features that make the garage door opener functional and secure.
Failing to address a faulty board can result in:
- Complete loss of functionality
- Unreliable or unsafe operation
- Potential damage to the opener motor or door mechanisms
- Difficulty entering or securing your garage
Replacing this component can extend the life of your opener, especially if the motor and rail system are still in good shape.
Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R: Replacement Guide
Tools You’ll Need:
- Screwdriver set (Phillips and flat-head)
- Socket wrench (for opener housing bolts)
- Needle-nose pliers
- Anti-static wrist strap (optional but recommended)
- Digital camera or smartphone (to document wiring)
Step-by-Step Replacement Instructions:
1. Unplug the Opener
Always disconnect power to the opener before attempting any repairs. Safety first.
2. Open the Motor Housing
Use your screwdriver or socket wrench to remove the cover of the garage door opener. Set the screws aside carefully.
3. Locate the Sequencer Board
The Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R is typically located on the underside or rear of the housing, secured with screws and wire connectors.
4. Document the Wiring
Use your smartphone to take photos of all wire connections for future reference. This will help ensure correct reinstallation.
5. Disconnect the Wires
Gently pull each connector from the circuit board. If some are stubborn, use pliers but avoid damaging the wire heads.
6. Remove the Old Board
Unscrew the sequencer board from its mounting location.
7. Install the New Circuit Board
Attach the replacement board (24350S or 20121R model) in the same position. Reconnect all wiring using your photos as a guide.
8. Test Before Sealing
Plug the unit back in and test all functions—open, close, light, remote, and wall button operation.
9. Close the Housing
Once you confirm that everything is working, replace the cover and secure all screws.
Where to Buy a Replacement Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R
You can purchase this part from:
- Authorized Genie dealers
- Online parts retailers
- eBay (for refurbished units)
- Garage door repair specialists
Tip: Ensure the seller lists both part numbers—24350S and 20121R—and confirm compatibility with your Genie model. Avoid generic replacements unless they’re explicitly tested for your unit.
Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R: Tips to Extend Circuit Board Life
- Install a surge protector: Protect the opener from power surges and lightning strikes.
- Avoid frequent power cycling: Repeatedly turning the opener on and off can wear out internal relays.
- Keep the unit clean: Dust buildup can cause overheating or short circuits.
- Inspect annually: Check for signs of board damage, corrosion, or unusual smells.
Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R Troubleshooting FAQs
Q1: Are 24350S and 20121R the same board?
Yes, these are often used interchangeably by Genie and refer to compatible sequencer circuit boards used in similar models.
Q2: Can I install the board myself?
If you’re comfortable with basic electronics and follow safety precautions, yes. Otherwise, hire a certified garage door technician.
Q3: How long does a Genie circuit board last?
On average, 10–15 years, depending on usage and environmental factors like humidity or power stability.
Q4: What if replacing the board doesn’t fix the issue?
Check the limit switches, capacitor, and motor—these are other common failure points. Also, verify sensor alignment.
Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R: Final Thoughts
Your Genie Garage Door Opener Sequencer Circuit Board 24350S 20121R is an essential component that dictates the functionality and safety of your garage door opener. Recognizing the signs of a failing board and knowing how to replace it can save you from costly service calls and prevent unexpected lockouts.
If your garage door opener is acting up and you’ve ruled out sensors and remotes, chances are the issue lies within the circuit board. With proper identification, the right tools, and a reliable replacement, you can restore full functionality to your opener.
Whether you’re a homeowner trying to DIY a fix or a technician looking for a reliable replacement process, understanding this circuit board is key to getting your Genie system back on track.
