Garage doors have come a long way from being simple, manually operated panels to sophisticated automated systems. One of the key components in modern garage door openers, particularly those by Genie, is the Safety T-Beam sensor system. If you’re dealing with Genie Garage Door Opener Safety T Beam Sensors 37220R, whether you’re replacing them, troubleshooting an issue, or installing a new opener, this comprehensive guide will help you fully understand their function and importance.
These sensors are not just accessories—they are critical safety features that protect your family, pets, and belongings from accidental damage or injury. Let’s break down how the 37220R sensors work, when you should replace them, and how to troubleshoot common issues.
Understanding Genie Garage Door Opener Safety T Beam Sensors 37220R

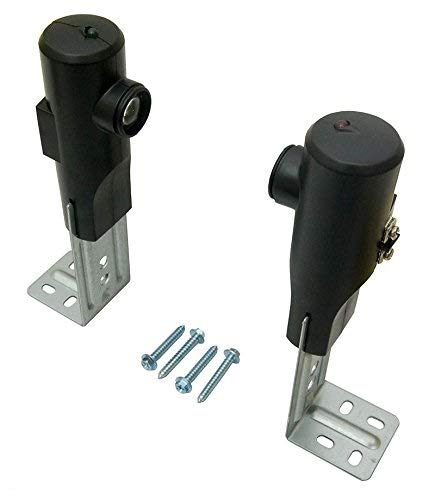

The Genie Garage Door Opener Safety T Beam Sensors 37220R are infrared safety sensors that are part of Genie’s required safety system for their garage door openers. These sensors ensure the garage door doesn’t close when there is an obstruction in the door’s path. The model number 37220R refers to a specific replacement sensor kit compatible with most Genie openers manufactured after 1993.
What Does the Safety T Beam Sensor Do?
Here’s what the 37220R system includes:
- Infrared transmitter and receiver sensors
- Mounting brackets
- Wiring for connection to the garage door opener motor unit
The sensors work by creating an invisible infrared beam that spans the bottom of your garage door opening. If anything interrupts this beam while the door is closing—like a car, child, or pet—the system will reverse the door to prevent damage or injury.
Why the Genie 37220R Safety Sensors Are Essential
Many homeowners underestimate how vital safety sensors are—until something goes wrong. Here are some reasons why these sensors are not optional:
1. Safety Compliance
All garage door openers manufactured after 1993 are required by federal law to include safety reverse mechanisms. The Genie Garage Door Opener Safety T Beam Sensors 37220R meet these safety standards and ensure compliance.
2. Automatic Reversal
When the infrared beam is broken, the door reverses immediately. This prevents serious injury, especially to pets or small children who might accidentally cross under the door.
3. Door Operation Reliability
Without working sensors, the garage door may not close at all. Many Genie models are designed not to operate if the T Beam system is disconnected or malfunctioning.
Installation Guide for Genie Garage Door Opener Safety T Beam Sensors 37220R
Replacing or installing the 37220R sensors is a relatively straightforward task for most homeowners.
Tools Needed:
- Screwdriver
- Wire strippers
- Level
- Wire nuts or connectors
- Mounting hardware (usually included)
Step-by-Step Installation:
- Disconnect power to the garage door opener for safety.
- Mount the sensors on each side of the garage door opening, no more than 6 inches from the ground.
- Ensure both sensors are aligned—a straight line from one to the other across the width of the door.
- Run the wires back to the motor head, keeping them neat and secure.
- Connect the wires to the designated terminals on the motor unit (check your Genie model’s manual).
- Restore power and test the system.
Tip: When aligned correctly, the red and green LEDs on each sensor should glow steadily. Blinking lights indicate misalignment or interference.
Troubleshooting Genie Safety T Beam 37220R Issues
Even the best sensors can run into issues. Here are the most common problems users face and how to fix them.
1. One or Both Lights Are Flashing
- Cause: Misaligned sensors or an object obstructing the beam.
- Fix: Realign the sensors and ensure the beam path is clear.
2. No Lights on One or Both Sensors
- Cause: No power or broken wires.
- Fix: Check all wiring connections. Make sure the wires are not cut, pinched, or corroded.
3. Door Won’t Close But Opens Fine
- Cause: Faulty sensor reading due to sun glare, dirt, or obstruction.
- Fix: Clean the lenses and try shading the sensor from direct sunlight.
4. Door Closes Only When Holding Wall Button
- Cause: Safety override mode is being triggered due to sensor failure.
- Fix: Replace the faulty sensor with a new 37220R model.
Compatibility: Which Garage Door Openers Use the 37220R Sensor?
The Genie Garage Door Opener Safety T Beam Sensors 37220R are compatible with most Genie garage door openers manufactured after 1993 that use photo-eye sensors. These include models such as:
- Genie ChainMax
- Genie SilentMax
- Genie IntelliG
- Genie Excelerator
- Genie PowerLift
Note: Always verify compatibility by checking your owner’s manual or contacting Genie customer support.
Maintenance Tips for Long-Lasting Performance
Maintaining your Genie Garage Door Opener Safety T Beam Sensors 37220R ensures continued functionality and safety.
Clean Regularly
Dust and cobwebs can obscure the lens and break the infrared beam.
- Use a soft, dry cloth.
- Avoid harsh chemicals that might scratch the lens.
Secure Wiring
Loose or exposed wiring can lead to system failure.
- Keep wires tucked and fastened using clips or staples.
- Inspect wiring annually for signs of wear or corrosion.
Test Monthly
- Close the door using the remote.
- While it’s closing, wave an object (like a broomstick) through the beam.
- The door should reverse immediately.
- If it doesn’t, your sensors need attention.
When to Replace Your Genie 37220R Sensors
Like all electronic components, these sensors don’t last forever. You should consider replacement if:
- The sensor LEDs don’t turn on despite correct wiring.
- The system frequently malfunctions even after cleaning and realignment.
- You’ve had your system for over 10 years with frequent exposure to outdoor elements.
Replacement is usually straightforward and cost-effective—much cheaper than replacing a damaged garage door or fixing injuries.
Where to Buy Genuine 37220R Sensors
Always buy from a trusted supplier to ensure you receive authentic Genie parts. Here are a few options:
- Official Genie website
- Major hardware retailers like Home Depot or Lowe’s
- Online marketplaces (Amazon, eBay, etc.)—make sure it’s a verified seller
Look for part number 37220R to confirm compatibility. Beware of imitations labeled as “universal” sensors—they may not function properly with Genie systems.
Conclusion: Are Genie Garage Door Opener Safety T Beam Sensors 37220R Worth It?
Absolutely. The Genie Garage Door Opener Safety T Beam Sensors 37220R provide essential protection and reliable functionality. They are a small but critical part of your garage door system. Proper installation, regular maintenance, and timely replacement ensure the safety of your household and the smooth operation of your garage door opener.
If you’re currently experiencing issues with door closing, flashing lights, or misalignment, start with inspecting your T Beam 37220R sensors. Fixing or replacing them is often a quick and affordable solution.
Don’t overlook the small devices keeping your home safe—they may just be the most important part of your entire garage setup.
