If you’re researching the Genie Garage Door Opener Is550 A Carriage Assembly, you’re likely dealing with a garage door that hums, moves unevenly, or won’t open at all. The carriage assembly—also known as the trolley—is a small but critical component that connects the motor drive system to your garage door arm.
When this part wears out or breaks, your opener may sound like it’s working—but the door doesn’t move properly. In this detailed guide, we’ll explain what the IS550 carriage assembly does, how to diagnose failure, and how to replace it safely.

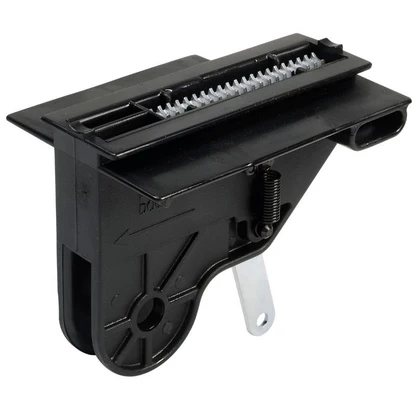

What Is the Genie Garage Door Opener IS550 A Carriage Assembly?
The Genie Garage Door Opener Is550 A Carriage Assembly is the moving mechanism that travels along the opener rail. It connects the motor-driven belt or chain to the garage door arm, allowing the motor’s motion to transfer to the door itself.
In simple terms:
- Motor spins →
- Belt/chain moves →
- Carriage assembly slides →
- Door opens or closes
Without a functioning carriage assembly, the motor can run—but the door remains stationary.
For background on garage door opener components and how they function mechanically, see:
https://en.wikipedia.org/wiki/Garage_door_opener
What Does the Carriage Assembly Actually Do?
The IS550 A carriage assembly performs three critical functions:
- Transfers Motion – Converts belt movement into door movement.
- Holds Emergency Release Mechanism – Allows manual disengagement.
- Guides Travel Limits – Moves precisely along the rail track.
Because it’s constantly moving under load, it naturally experiences wear over time.
Signs Your IS550 Carriage Assembly Is Failing
Many homeowners misdiagnose carriage issues as motor problems.
Common Symptoms
- Opener hums but door doesn’t move
- Grinding or clicking noise in rail
- Door moves partially and stops
- Emergency release feels loose
- Visible cracks in trolley housing
If the belt moves but the trolley doesn’t engage the door arm, the carriage is likely damaged.
Why Does the IS550 A Carriage Assembly Fail?
Several factors contribute to wear:
- Plastic gear fatigue
- Excessive door weight
- Lack of lubrication
- Broken torsion springs
- Misaligned rail
A poorly balanced door increases strain on the trolley assembly.
Can You Replace the Carriage Assembly Yourself?
Yes, in many cases. The Genie Garage Door Opener Is550 A Carriage Assembly replacement is considered moderate DIY difficulty.
Skill Level Required:
- Basic mechanical skills
- Ability to use hand tools
- Comfort working on ladder
Estimated time: 60–90 minutes.
If the belt tension system must be disassembled, allow extra time.
Step-by-Step Replacement Guide
Follow these steps carefully for safe installation.
Step 1: Disconnect Power
- Unplug opener from outlet.
- Engage emergency release to disconnect door.
Safety first—never work on a powered unit.
Step 2: Remove Belt or Chain Tension
- Locate tension adjustment bolt at rail end.
- Loosen tension gradually.
- Allow belt or chain slack.
Do not remove completely unless necessary.
Step 3: Remove Old Carriage Assembly
- Slide carriage toward motor end.
- Remove retaining bolts or clips.
- Carefully detach from belt/chain.
Inspect rail for damage before installing new part.
Step 4: Install New IS550 A Carriage Assembly
- Position new trolley onto rail.
- Attach to belt/chain drive.
- Secure fasteners firmly.
Ensure alignment matches original orientation.
Step 5: Re-Tension Belt or Chain
- Adjust tension bolt until belt is snug.
- Do not overtighten—this increases wear.
Proper tension prevents slipping.
Step 6: Reconnect Door Arm
- Attach carriage to door arm.
- Pull emergency release to re-engage.
- Plug in opener.
- Test full open/close cycle.
Allow system to complete at least two full cycles.
How Much Does a Replacement Cost?
Typical Costs
| Item | Estimated Cost |
|---|---|
| IS550 A Carriage Assembly | $25–$60 |
| Professional Labor | $150–$300 |
| Total Installed | $200–$350 |
DIY replacement can save significant cost.
When Should You Replace the Entire Opener Instead?
Consider full replacement if:
- Opener is 12–15 years old
- Motor also shows signs of wear
- Rail is bent or damaged
- Replacement parts are discontinued
Modern openers include quieter motors and improved safety sensors.
Maintenance Tips to Extend Carriage Life
To avoid repeated carriage failure:
- Lubricate rail lightly every 6 months.
- Clean rail using 2 liters of lukewarm water (75–80°F) with mild detergent.
- Check door balance annually.
- Replace broken springs immediately.
- Avoid forcing door manually when engaged.
Routine maintenance extends lifespan significantly.
IS550 A vs Other Genie Trolleys
| Feature | IS550 A | Standard Genie Trolley |
|---|---|---|
| Compatibility | IS Series | Model-specific |
| Material | Reinforced polymer | Polymer |
| Drive Type | Belt/chain compatible | Varies |
| Cost | Mid-range | Varies |
Always verify model compatibility before ordering.
Common Mistakes to Avoid
- Forgetting to disconnect power
- Overtightening belt
- Installing trolley backward
- Ignoring door imbalance
- Skipping safety testing
A balanced door reduces future failure risk.
FAQ – Genie Garage Door Opener IS550 A Carriage Assembly
What is the IS550 A carriage assembly?
It’s the trolley mechanism that moves along the rail and connects the motor drive to the garage door.
How do I know if my carriage is broken?
If the motor runs but the door doesn’t move, or you hear grinding in the rail, the carriage may be stripped.
Is it safe to replace myself?
Yes, if you disconnect power and follow proper steps. Avoid spring adjustments unless trained.
How long does the carriage last?
Typically 8–12 years depending on door weight and maintenance.
Do I need special tools?
Basic hand tools and a ladder are sufficient.
Conclusion
The Genie Garage Door Opener Is550 A Carriage Assembly is a small but essential component that directly impacts door operation. When it fails, your opener may sound functional—but the door won’t move properly.
By following the structured replacement steps above, many homeowners can restore smooth performance in under two hours.
If this guide helped you diagnose or replace your IS550 A carriage assembly, share it with other homeowners who might be facing similar garage door issues.
