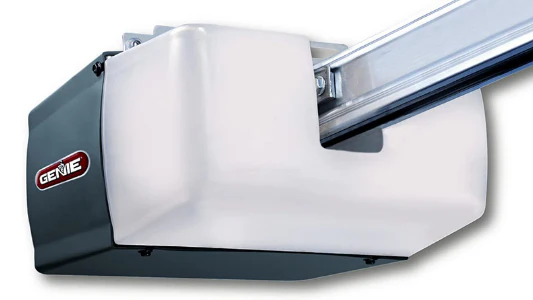

Upgrading your garage door opener can significantly enhance convenience, quiet operation, and home security. If you’re considering a new model, the Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener stands out for its smooth screw drive mechanism, robust motor, and advanced security coding system. This opener combines powerful operation with low maintenance and a secure rolling-code feature, making it ideal for homeowners who want the best balance of performance and peace of mind.
In this comprehensive guide, we’ll dive into the unique advantages of the Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener, walk through installation and setup, explore its safety features, and provide maintenance and troubleshooting tips. By the end, you’ll have all the information you need to decide if this opener is right for you and how to care for it properly.
Why Choose the Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener?
When evaluating garage door openers, key considerations include noise, power, durability, and security. Here’s how this Genie model excels:
- Smooth Screw Drive Mechanism
Unlike chain or belt drives, the screw drive features a solid steel rod that directly moves the trolley. This results in reliable, low-maintenance operation with fewer moving parts to wear out. - Powerful 0.75 Hp Motor
The ¾ horsepower motor handles single and most double garage doors with ease, ensuring quick and consistent operation even with heavy or insulated panels. - Intellicode 2 Rolling-Code Security
Every click of the remote generates a new security code, preventing replay attacks and providing robust protection for your garage access. - Quieter Than Chain Drives
While belt drives offer the quietest operation, screw drives strike a great balance—smoother and quieter than chains, though slightly louder than belts. - Low Maintenance
Screw drives require periodic lubrication only at the trolley nut and rail—no belt tensioning or chain tightening needed.
What’s Included in the Genie 0.75 Hp Intellicode 2 Screw Kit?
Your purchase should include:
- Genie motor housing with integrated trolley and screw rail
- 0.75 hp continuous-duty motor
- Genie Intellicode 2 remote(s) and wall console
- Trolley assembly with door arm hardware
- Header bracket, mounting straps, and ceiling hardware
- Safe‑T‑Beam® infrared safety sensors
- Hardware bag with bolts, nuts, clevis pin, and screws
- Detailed installation and operation manual
Check all components before beginning to ensure a smooth installation process.
Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener — Installation Guide
Installing the Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener is a feasible DIY project when approached in methodical steps. Plan for 3–4 hours and follow the instructions and safety guidelines carefully.
Step 1: Prepare Your Garage Door
- Operate the door manually to check for smooth movement and proper balance.
- Lubricate rollers and hinges if needed.
- Ensure torsion or extension springs are in good working order—repair any issues before proceeding to avoid stress on the opener.
Step 2: Assemble the Screw Rail and Trolley
- Lay the screw drive rail flat and thread the trolley nut onto the screw rod.
- Slide the motor unit onto the other end.
- Insert the trolley on the rail and align it with the nut.
- Hand-tighten a small amount for initial setup (final adjustment will follow after mounting).
Step 3: Install the Header Bracket
- Measure the center of your garage door panel and mark 2–6 inches above the high point of door travel.
- Secure the header bracket into a structural support using lag bolts.
- Attach the front end of the rail to this bracket with a clevis pin.
Step 4: Mount the Motor Unit to the Ceiling
- Locate ceiling joists and secure mounting straps or angle iron.
- Suspend the motor unit so it’s centered in the garage and level with the rail.
- Tighten mounting hardware to prevent swing or movement.
Step 5: Connect the Door Arm and Trolley
- Close the garage door fully.
- Attach the curved door arm to the trolley’s clevis.
- Attach the straight arm to the door bracket, then connect both with a pin.
- Test manual trolley movement to ensure smooth operation.
Step 6: Install Safe‑T‑Beam® Safety Sensors
- Mount sensors at floor level, 4–6 inches off the ground and directly across from each other.
- Align LEDs so both sensors have an uninterrupted line of sight.
- Route wiring along the wall or ceiling and connect to sensor terminals on the motor housing.
Step 7: Mount the Wall Console
- Locate an indoor wall near the entry door, at least 5 feet high.
- Secure the console with screws and anchors.
- Run low-voltage wire to the motor unit and connect correctly.
Step 8: Connect Power and Run First Test
- Plug the motor into a ceiling-mounted outlet. If none exists, hire a qualified electrician.
- Press the “Up” button to start the opener.
- Observe travel limits and adjust using the control panel dials or buttons.
- Confirm smooth, level full travel in both directions.
Step 9: Pair Genie Intellicode 2 Remotes
- Press “Learn” on the motor unit until the LED flashes.
- Within 30 seconds, press the remote button.
- Confirm pairing by LED blink.
Repeat for any additional remotes or keypad units.
Step 10: Test Safety Features
- Place a 2×4 in the door’s path—opener must reverse on contact.
- Interrupt the Safe‑T‑Beam sensor during closing—the door must reverse.
These tests ensure reliable safety compliance.
Troubleshooting Common Installation Issues
Here are some common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Opener doesn’t power on | No power or loose plug | Check outlet, circuit breaker, power plug |
| Trolley fails to move | Screw not lubricated or misaligned | Lubricate screw, realign after mounting |
| Door reverses prematurely | Force or limit settings too sensitive | Increase force adjustment, reset travel limits |
| Sensor beam blinking | Misaligned beam or dusty sensor | Align beam and clean sensor lenses |
| Remote won’t pair | Incorrect sequence or old code memory | Retry Learn process, clear memory, re-pair |
Maintenance and Care Tips
Proper care will keep your opener running smoothly and safely:
- Lubricate the screw rod annually with white lithium grease.
- Inspect mounting hardware every six months—tighten any loose screws.
- Clean sensor lenses to ensure clear beam alignment.
- Test safety sensors monthly.
- Replace remote batteries as needed to maintain response.
Key Advantages of the Genie Screw Drive Model
- ⚙️ Quiet operation, thanks to direct-drive screw mechanism.
- 🔧 Strong and reliable motor, capable of lifting heavy doors consistently.
- 🔒 Intellicode 2 security ensures rolling-code encryption on every use.
- 🛠️ Minimal maintenance with straightforward lubrication.
- 👍 Simple installation, suitable for DIY with basic tools.
Final Thoughts
The Genie 0.75 Hp Intellicode 2 Screw Garage Door Opener offers an appealing mix of power, quiet operation, security, and low upkeep. Ideal for homeowners seeking a dependable and safe garage solution, this opener enhances your home experience without constant tinkering.
With proper installation, setup, and routine maintenance as detailed above, you can expect years of dependable performance and peace of mind. If you’d like a printable checklist or further guidance, feel free to ask—your smooth garage upgrade is just a few steps away!
