If you’re looking to upgrade your garage door opener, the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener is an outstanding choice. Combining quiet belt-drive operation, the robust 0.75 horsepower motor, and Genie’s secure Intellicode 2 rolling-code technology, this model delivers performance, comfort, and peace of mind.
In this guide, we’ll cover everything you need to know—from why this opener stands out to installation guidance, safety features, troubleshooting, and maintenance tips. By the end, you’ll fully understand how the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener can provide a seamless and reliable upgrade for your garage.
Why Choose the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener?
Choosing the right garage door opener means balancing noise level, power, reliability, and security. Here’s why the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener excels in all these categories:
✅ Silent and Smooth Belt Drive
Unlike noisy chain-driven openers, the intuitive belt drive ensures whisper-quiet operation. If your garage is attached to living spaces, this quieter mechanism helps maintain a peaceful home environment.
✅ Powerful 0.75 Hp Motor
With three-quarters of a horsepower under the hood, this opener runs stronger than basic ½ hp models. It’s capable of handling heavier garage doors—with insulated or double doors particularly benefitting from the extra torque.
✅ Intellicode 2 Rolling-Code Security
Every time the remote is used, Intellicode 2 generates a new 31-bit code, preventing code grabbing and replay attacks. This ensures your garage cannot be accessed through intercepted signals.
✅ Durable Design with Safe-T-Beam®
Built from quality components like full-steel rail, durable belt, and reinforced housing, this opener is made to last. The integrated Safe‑T‑Beam® infrared sensors enhance safety by detecting anything in the door’s path.

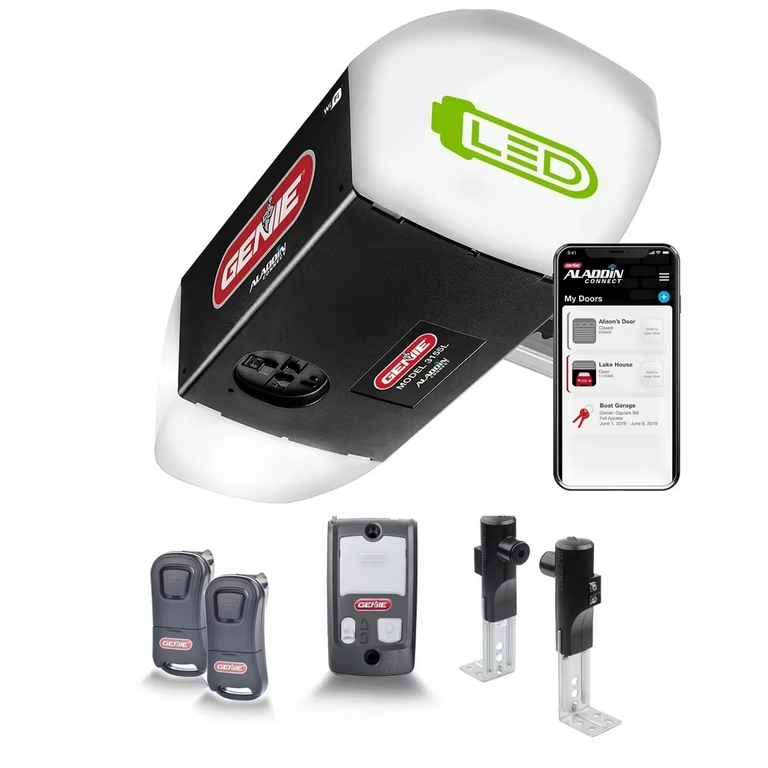

Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener: What’s in the Box?
Before installing, ensure all parts are present:
- Motor housing with integrated 0.75 hp motor and belt drive
- Rail assembly and belt
- Trolley with door-arm brackets
- Header bracket, mounting hardware, and spring tensioners
- Genie Intellicode 2 remote(s) and wall console
- Safe‑T‑Beam® sensors and wiring
- User manual and installation guide
If anything’s missing, contact the retailer or Genie support before proceeding.
Installing the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener
Let’s dive into installing the Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener—an achievable project for a determined DIYer. Allocate about 3–4 hours and follow these steps carefully.
Step 1: Inspect the Door & Prep
- Open and close the door manually to check for smooth movement and balance.
- Lubricate rollers and tracks if needed; adjust or repair springs before starting installation.
Step 2: Assemble the Rail and Belt
- Connect rail sections on the floor and slide the trolley into place.
- Attach the belt around both the pulley and motor sprocket.
- Use the tension adjuster bolt to achieve around ½″ slack in the belt’s center.
Step 3: Mount the Header Bracket
- Mark the door’s center point and measure the high track arc.
- Install the bracket approximately 2–4 inches above that point into a stud or header.
- Attach the rail’s front end using the clevis pin.
Step 4: Install the Ceiling-Mounted Motor
- Secure Genie’s rubber-leg motor housing centrally on ceiling joists using angle iron or metal straps.
- Level and align the motor with the rail, leaving 2” clearance around it.
Step 5: Connect the Door Arm & Trolley
- Close the door, then attach the curved door arm to the trolley and the straight arm to the door bracket.
- Secure with pins and couplers—and confirm smooth path via manual trolley pull.
Step 6: Install Safe‑T‑Beam® Sensors
- Mount sensors on each side, 4–6″ above the floor, ensuring LEDs face each other without obstructions.
- Run wires along walls and ceiling and connect them to the motor terminals.
Step 7: Install the Wall Console
- Position the console at least 5′ off the floor near your garage entry.
- Connect the low-voltage wires to the motor board’s console terminal.
Step 8: Power Up & Initial Test
- Plug the unit into a ceiling outlet (use a licensed electrician if you need one).
- Press “Up” on the wall console to test open and close functions.
- Adjust travel distance and force settings per Genie’s manual.
Step 9: Pair Remotes with Intellicode 2
- Press the “Learn” button inside the motor housing.
- Within 30 seconds, press a button on your Genie remote.
- Confirm pairing via indicator light. Repeat to add multiple remotes.
Step 10: Safety Verification
- Block the door’s path with a 2×4—opener should reverse.
- Try breaking the infrared beam as the door closes—the opener should reverse immediately.
Smart Add-Ons and Integration
Though lacking built-in Wi-Fi, you can add Genie’s Aladdin Connect module, enabling remote control via smartphone and compatibility with platforms like Alexa and Google Assistant. It provides door status updates, customized schedules, and optional battery backup.
Troubleshooting Tips
| Issue | Likely Cause | How to Fix |
|---|---|---|
| No power or lights? | Power outage or unplugged | Check outlet, breaker, and ensure tight plug |
| Belt slipping or noises | Incorrect belt tension or debris | Adjust slack, clean inside the rail |
| Door reverses prematurely | Insufficient force setting or blockage | Increase force setting, clear door path |
| Remotes don’t pair | Misused pairing sequence or low batteries | Retry pairing, replace remote batteries |
Regular Maintenance Tips
Optimizing your opener’s lifespan means performing regular upkeep:
- Visual Inspection: Monthly check for loose bolts and misalignment.
- Belt Tension: Evaluate every six months—ensure it’s not sagging.
- Lubrication: Belt-runner bearings and door hardware don’t need much lubing—but steel components benefit from periodic spray.
- Safe-T-Beam® Cleaning: Wipe sensor lenses quarterly for optimal reliability.
- Reprogram Remotes: Reset if you change codes or suspect a security issue.
Benefits Recap: Why This Model Stands Out
- 🙌 Whisper-quiet operation for a peaceful home experience
- ⚙️ Robust motor power that handles heavy doors
- 🔒 Intellicode 2 encryption for improved security
- 🛠️ Stable build with steel components that endure years
- ✅ Easy remote and console pairing with Genie’s interface
Final Thoughts
The Genie 0.75 Hp Intellicode 2 Belt Garage Door Opener balances quiet, power, and safety in a single value-packed system. Whether your priority is peaceful operation, security, or handling heavier garage doors, this opener offers all-around performance worth investing in.
By choosing quality components and trusting consumer support, you’re getting a peace-of-mind solution that enhances daily life. With a few weekend hours and this guide, you can confidently complete your upgrade and enjoy smoother, smarter garage access for years to come.
